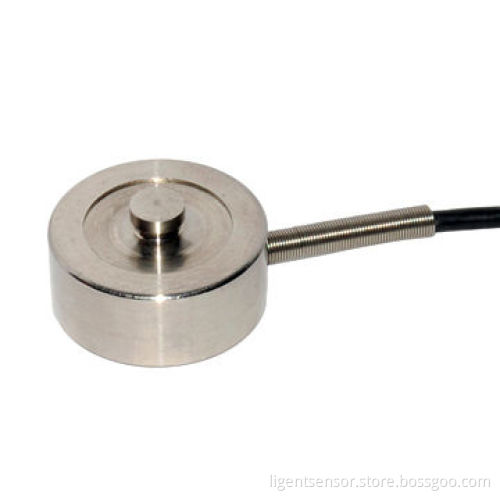

Miniature Compression Load Cell for Medical Bed
  • Miniature Compression Load Cell for Medical Bed
  • Miniature Compression Load Cell for Medical Bed
Miniature Compression Load Cell for Medical Bed
Miniature Compression Load Cell for Medical Bed

Miniature Compression Load Cell for Medical Bed

Get Latest Price
Payment Type:
T/T in Advance, PayPal, Western Union
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T in Advance, PayPal, Western Union
Product Description
Product Description
  • Features and applications:
    • Small volume column structure, large capacity is also available
    • Material: stainless steel
    • With nice dynamic response
    • Mainly applied in impact force test equipment, pneumatic hydraulic equipment and other fields
    • Capacity: 5, 10, 20, 50, 100, 200, 500kg (1000/1500/2000kg/button diameter 6mm)
  • Specifications:
    • Rated output: 1.0 to 2.0mV/V ±10%
    • Zero balance: ±2% FS
    • Non-linearity: 1.0% FS
    • Hysteresis: 1.0% FS
    • Repeatability: 1.0% FS
    • Creep (30 minimum): 0.5% FS
    • Temperature effect on output: 0.5% FS/10°C
    • Temperature effect on zero: 0.5% FS/10°C
    • Input impedance: 350±10Ω
    • Output impedance: 350±3Ω
    • Insulation: ≥1000MΩ/50V DC
    • Recommended excitation: 5V
    • Maximum excitation: 10V
    • Compensated temperature range: -10 to 60°C
    • Operation temperature range: -20 to 80°C
    • Safe overload: 120%
    • Ultimate overload: 200%
    • Cable size: Ø4 x 2m
  • Wire connection:
    • Ex+: red
    • Ex-: black
    • Output+: green
    • Output -: white
  • Small volume column structure, large capacity is also available
  • Material: stainless steel
  • With nice dynamic response
  • Mainly applied in impact force test equipment, pneumatic hydraulic equipment and other fields
  • Capacity: 5, 10, 20, 50, 100, 200, 500kg (1000/1500/2000kg/button diameter 6mm)
  • Rated output: 1.0 to 2.0mV/V ±10%
  • Zero balance: ±2% FS
  • Non-linearity: 1.0% FS
  • Hysteresis: 1.0% FS
  • Repeatability: 1.0% FS
  • Creep (30 minimum): 0.5% FS
  • Temperature effect on output: 0.5% FS/10°C
  • Temperature effect on zero: 0.5% FS/10°C
  • Input impedance: 350±10Ω
  • Output impedance: 350±3Ω
  • Insulation: ≥1000MΩ/50V DC
  • Recommended excitation: 5V
  • Maximum excitation: 10V
  • Compensated temperature range: -10 to 60°C
  • Operation temperature range: -20 to 80°C
  • Safe overload: 120%
  • Ultimate overload: 200%
  • Cable size: Ø4 x 2m
  • Ex+: red
  • Ex-: black
  • Output+: green
  • Output -: white
