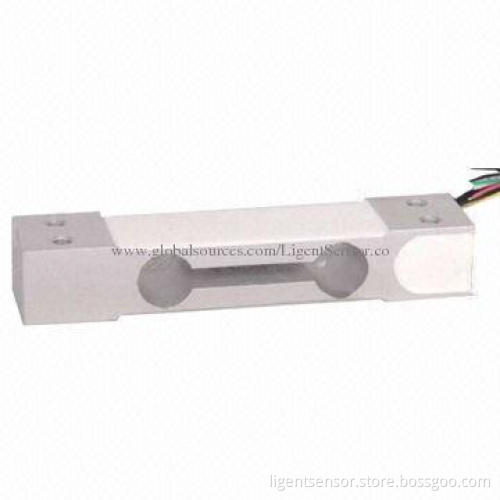

Single-point Load Cell, Aluminum
  • Single-point Load Cell, Aluminum
  • Single-point Load Cell, Aluminum
Single-point Load Cell, Aluminum
Single-point Load Cell, Aluminum

Single-point Load Cell, Aluminum

Get Latest Price
Payment Type:
Advanced TT, T/T, PayPal, Western Union
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Advanced TT, T/T, PayPal, Western Union
Product Description
Product Description
  • Features and applications:
    • Aluminum alloy material, single-point parallel beam, structure
    • High accuracy, very good eccentric/deviated load tolerance, and simple structure, easy to install
    • Suitable for electronic scales, count scales, electronic balance, and industrial weighing system
    • Capacities: 3, 5, 6, 8, 10, 15, 20, 30, 50, 60, 100, 150, 200 and 250kg
  • Specification:
    • Rated output voltage: 2.0, ±10%mV/V
    • Zero balance: ±2% F.S
    • Non-linearity: 0.02% F.S
    • Hysteresis: 0.02% F.S
    • Repeatability: 0.025% F.S
    • Creep (30mins): 0.025 % F.S
    • Temperature effect on output: 0.025% F.S./10ºC
    • Temperature effect on zero: 0.025% F.S./10ºC
    • Input impedance: 410, ±30Ω
    • Output impedance: 350, ±3Ω
    • Insulation: ≥5,000MΩ/100V DC
    • Recommended excitation: 10V
    • Maximum excitation: 15V
    • Compensated temperature range: -10-60ºC
    • Operation temperature range: -20-80ºC
    • Safe overload: 150%
    • Ultimate overload: 300%
    • Cable size: 4 x 45cm
    • Wire connection:
      • Ex+: red
      • Ex-: black
      • Output+: green
      • Output-: white
  • Aluminum alloy material, single-point parallel beam, structure
  • High accuracy, very good eccentric/deviated load tolerance, and simple structure, easy to install
  • Suitable for electronic scales, count scales, electronic balance, and industrial weighing system
  • Capacities: 3, 5, 6, 8, 10, 15, 20, 30, 50, 60, 100, 150, 200 and 250kg
  • Rated output voltage: 2.0, ±10%mV/V
  • Zero balance: ±2% F.S
  • Non-linearity: 0.02% F.S
  • Hysteresis: 0.02% F.S
  • Repeatability: 0.025% F.S
  • Creep (30mins): 0.025 % F.S
  • Temperature effect on output: 0.025% F.S./10ºC
  • Temperature effect on zero: 0.025% F.S./10ºC
  • Input impedance: 410, ±30Ω
  • Output impedance: 350, ±3Ω
  • Insulation: ≥5,000MΩ/100V DC
  • Recommended excitation: 10V
  • Maximum excitation: 15V
  • Compensated temperature range: -10-60ºC
  • Operation temperature range: -20-80ºC
  • Safe overload: 150%
  • Ultimate overload: 300%
  • Cable size: 4 x 45cm
  • Wire connection:
    • Ex+: red
    • Ex-: black
    • Output+: green
    • Output-: white
  • Ex+: red
  • Ex-: black
  • Output+: green
  • Output-: white
