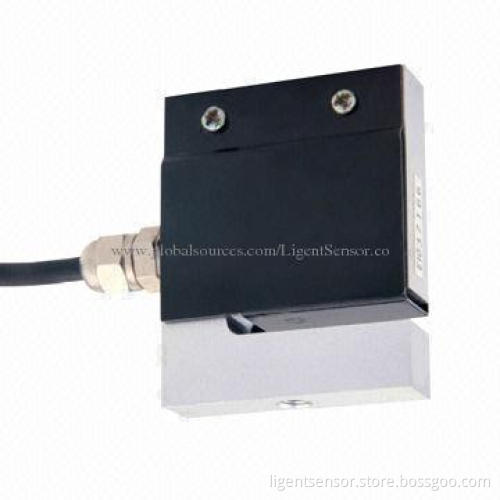

S-type Load Cell, 1, 2, 5, 6, 10, 15, 20, 30, 50, 100 and 200kg Capacity

S-type Load Cell, 1, 2, 5, 6, 10, 15, 20, 30, 50, 100 and 200kg Capacity

Get Latest Price

Payment Type:: T/T in Advance, PayPal, Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T in Advance, PayPal, Western Union

Product Description

Features and applications:

S-type, parallel beam or shear beam of aluminum alloy load cell
Mainly applied in tension and pressure testing instruments and automatic equipment fields, such as insertion force test instrument, riveting machine, welding machine, hot and cold lamination machine and texture tester for keyboard switch

Specification:

Rated output: 2.0, ±10% mV/V
Zero balance: ±2% FS
Non-linearity: 0.03% FS
Hysteresis: 0.03% FS
Repeatability: 0.03% FS
Creep (30 minutes): 0.03% FS
Temperature effect on output: 0.03% FS/10°C
Temperature effect on zero: 0.03% FS/10°C
Input impedance: 405, ±10Ω
Output impedance: 350, ±3Ω
Insulation: ≥5,000MΩ/100V DC
Recommended excitation: 5 to 10V
Maximum excitation: 15V
Compensated temperature range: -10 to 60°C
Operating temperature range: -20 to 80°C
Safe over-load: 120%
Ultimate overload: 150%
Cable size: (D) 4 x 6m
Capacity: 1, 2, 5, 6, 10, 15, 20, 30, 50, 100, 200kg
Wire connection:
- Ex+: red
- Ex-: black
- Output +: green
- Output -: white

S-type, parallel beam or shear beam of aluminum alloy load cell

Mainly applied in tension and pressure testing instruments and automatic equipment fields, such as insertion force test instrument, riveting machine, welding machine, hot and cold lamination machine and texture tester for keyboard switch

Rated output: 2.0, ±10% mV/V

Zero balance: ±2% FS

Non-linearity: 0.03% FS

Hysteresis: 0.03% FS

Repeatability: 0.03% FS

Creep (30 minutes): 0.03% FS

Temperature effect on output: 0.03% FS/10°C

Temperature effect on zero: 0.03% FS/10°C

Input impedance: 405, ±10Ω

Output impedance: 350, ±3Ω

Insulation: ≥5,000MΩ/100V DC

Recommended excitation: 5 to 10V
