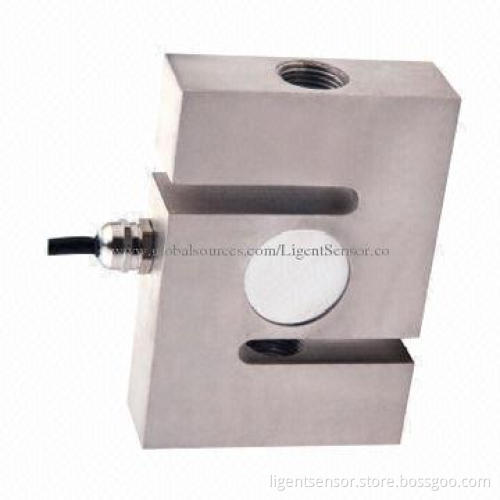

S-type Load Cell, Capacity 10kg - 5T

Get Latest Price

Payment Type:: T/T in Advance, PayPal or Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T in Advance, PayPal or Western Union

Product Description

Features:

S-type, parallel beam or shear beam of aluminum alloy or alloy steel load cell
Mainly applied in tension and compression testing instruments and automatic equipment fields, such as testing instruments, hopper scales, lifting hook scales, insertion force test instruments, riveting machine and welding machine

Specification:

Rated output: 2.0mV/V ±1% or 3.0mV/V ±1%
Zero balance: ±2% FS
Non-linearity: 0.03% FS
Hysteresis: 0.03% FS
Repeatability: 0.03% FS
Creep (30mins): 0.03% FS
Temperature effect on output: 0.03% FS/ 10°C
Temperature effect on zero: 0.03% FS/10°C
Input impedance: 385 ±10Ω
Output impedance: 350 ±3Ω
Insulation: ≥5,000MΩ/100V DC
Recommended excitation: 5 to 10V
Maximum excitation: 15V
Compensated temperature range: -10 to 60°C
Operating temperature range: -20 to 80°C
Safe over-load: 150%
Ultimate over-load: 200%
Cable size: 5 x 6m
Wire connection:
- Ex+: red
- Ex-: black
- Output+: green
- Output -: white
