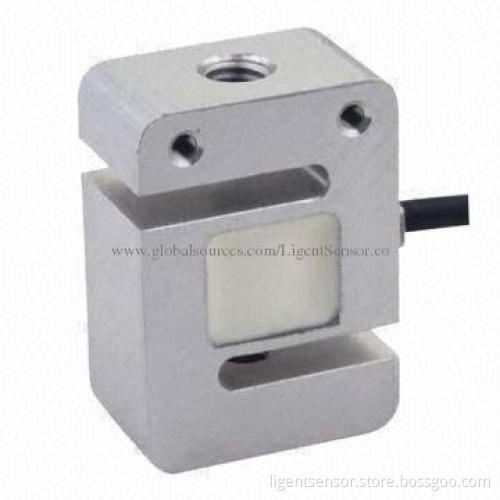

S-type Load Cell, Capacity 1-50kg

Get Latest Price

Payment Type:: T/T in Advance, PayPal, Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T in Advance, PayPal, Western Union

Product Description

Features and applications:

S-type structure, small size, and easy to install
Aluminum alloy or alloy steel materials with high accuracy and high dynamic frequency
Mainly applied in tension and pressure testing instrument and automatic equipment fields, such as insertion force test instrument, riveting machine, welding machine, hot and cold lamination machine, feeling tester for keyboard switch and more
Capacity: 1-50kg

Specification:

Rated output: 2.0 ±10% mV/V
Zero balance: ±2% FS
Non-linearity: 0.05% FS
Hysteresis: 0.05% FS
Repeatability: 0.05% FS
Creep (30min): 0.05% FS
Temperature effect on output: 0.05% FS/10°C
Temperature effect on zero: 0.05% FS/10°C
Input impedance: 385 ±10Ω
Output impedance: 350 ±3Ω
Insulation: ≥5,000MΩ/100V DC
Recommended excitation: 5-10V
Maximum excitation: 15V
Compensated temperature range: -10-60°C
Operating temperature range: -20-80°C
Safe overload: 120%
Ultimate overload: 150%
Cable size: Ø3 x 1.5m
Wire connection:
- Ex +: red
- Ex -: black
- Output +: green
- Output -: white
