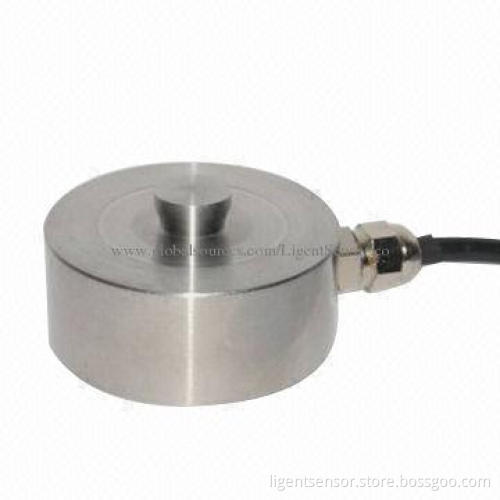

Miniature Compression Load Cell, 50kg - 5t

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Advanced TT, T/T, Paypal, Western Union

Product Description

Features and applications:

Small volume column structure, large capacity is also available
Material: stainless steel with nice dynamic response
Mainly applied in impact force test equipment, pneumatic hydraulic equipment and other fields
Capacity: 50kg to 5T

Specification:

Wire connection:

Small volume column structure, large capacity is also available

Material: stainless steel with nice dynamic response

Mainly applied in impact force test equipment, pneumatic hydraulic equipment and other fields

Capacity: 50kg to 5T

Rated output: 2.0±10% mV

Zero balance: ±2% FS

Non-linearity: 0.5% FS

Hysteresis: 0.5% FS

Repeatability: 0.5% FS

Creep (30 minimum): 0.5% FS

Temperature effect on output: 0.15% FS/10°C

Temperature effect on zero: 0.15% FS/10°C

Input impedance: 1,050, ±10Ω

Output impedance: 1,050, ±3Ω

Insulation: ≥1,000MΩ/50V DC

Recommended excitation: 5V

Maximum excitation: 15V

Compensated temperature range: -10 to 70°C

Operating temperature range: -30 to 80°C

Safe over-load: 150%

Ultimate over-load: 200%

Cable size: 4 x 2m

Ex+: red

Ex-: black

Output+: green

Output -: white
