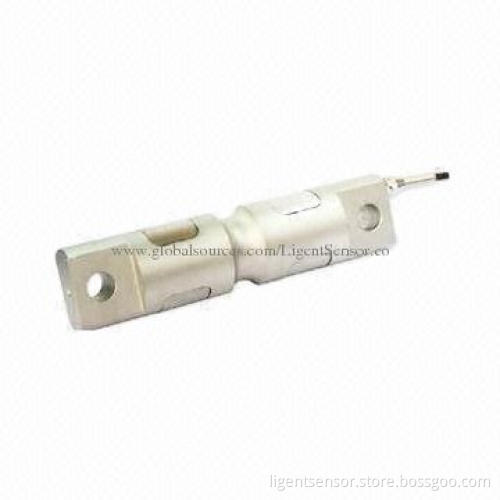

Double Shear Beam Load Cell, Mainly Used for Vehicle Scales

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T in Advance, PayPal, Western Union

Product Description

Features and applications:

Technical specifications:

Bridge, alloy steel load cell

Mainly used for vehicle scales, hanging scales and industrial weighing system

Capacity: 50 to 150kN

Material: alloy steel

Rated output: 2.0 ±10% mV/V

Zero balance: ±2% FS

Non-linearity: 0.05% FS

Hysteresis: 0.05% FS

Repeatability: 0.05% FS

Creep (30 minutes): 0.05% FS

Temp effect on output: 0.05% FS/10ºC

Temp effect on zero: 0.05% FS

Input impedance: 385 ±10Ω

Output impedance: 350 ±10Ω

Insulation: ≥5000MΩ/100V DC

Recommended excitation: 10V

Maximum excitation: 15V

Compensated temperature range: - 10 to 60ºC

Operating temperature range: - 20 to 80ºC

Safe load limit: 120%/10ºC

Ultimate load limit: 150%

Cable size: Ø 5 x 6m

Wire connection:

Ex+: red

Ex-: black

Sig+: green

Sig-: white
