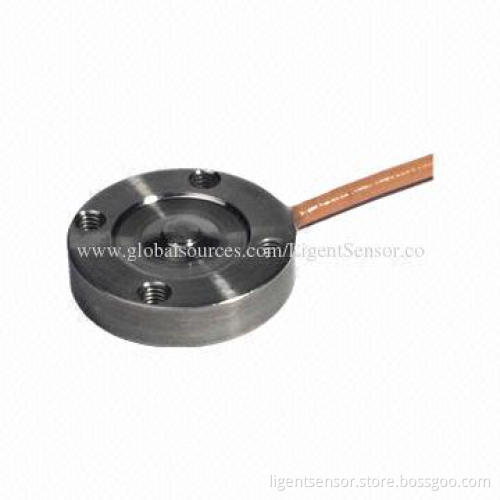

Miniature Compression Load Cell

Get Latest Price

Payment Type:: T/T in Advance, PayPal, Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T in Advance, PayPal, Western Union

Product Description

Features and applications:

Stainless steel or aluminum alloy material, oil-and water-proof, anticorrosive with diaphragm capsule structure
Compression bearing, small size, easy to install
Mainly applied in force measurement in small space installation, such as feeling tester for keyboard switch, pressure measurement for hot and cold lamination machine, and grasping force measurement for robotic hands.
Capacities: 2, 5, 10, 20, 30, 50kg

Specifications:

Rated outputs: 1.0-1.5mV/V
Zero balance: ±2% FS
Non-linearity: 1.0% FS
Hysteresis: 1.0% FS
Repeatability: 1.0% FS
Creep (30 minimum): 1.0% FS
Temperature effect on output: 1.0% FS/10°C
Temperature effect on zero: 1.0% FS/10°C
Input impedance: 350±10Ω
Output impedance: 350±5Ω
Insulation: ≥5000MΩ/50V DC
Recommended excitation: 5-10V
Maximum excitation: 15V
Compensated temperature range: -10 to 60°C
Operation temperature range: -20 to 80°C
Safe overload: 120%
Ultimate overload: 150%
Cable size: Ø3 x 2m

Wire connection:

Ex+: red
Ex-: black
Output+: green
Output -: white
