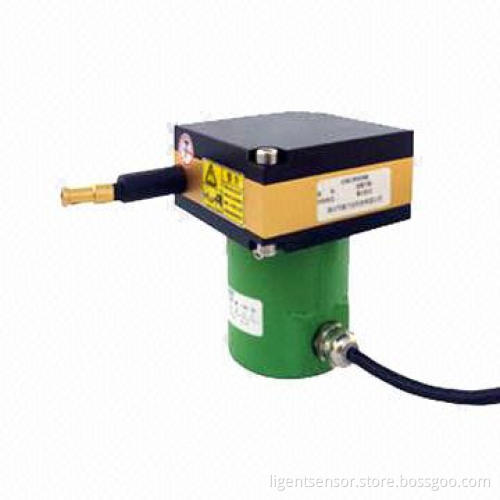

Draw Wire Displacement Position Sensor, 0 - 400mm Measurement Range

Draw Wire Displacement Position Sensor, 0 - 400mm Measurement Range

Get Latest Price

Payment Type:: T/T in Advance, PayPal or Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T in Advance, PayPal or Western Union

Product Description

Features:

The LW series of draw wire displacement/position sensors, is combined with photoelectric and mechanical displacement sensor in anodized aluminum housing and compact construction which ensures reliable operation even under harsh environments
The cable and wire drum are using imported highly flexible stainless steel material which guarantees a long life cycle and high operational reliability, such as strong corrosion resistance, long fatigue life, no stretch and stable wire retraction
With these features, the LW is a rugged, industrial grade sensor that provide long measurement range with high accuracy and high dynamic response

Applications:

Linear guide-railway system
Hydraulic air cylinder system
Flexible system for forklifts, press machine, lifting machine, pipe-bending machine, bending machine and more
Cranes
Cable winches
Storage position location
Reservoir dam protection system
Gate opening control system
Pressure machinery for testing
Paper machinery, textile machinery
Sheet metal machinery
Packaging machinery
Printing machinery
Level control instrument
Construction machinery
Woodworking machinery
Industrial robots
Injection machines
Elevator, air compressor/hydraulic press
Height measurement machine
X-Y axis displacement and other length of displacement
Liquid level related to size measurement and position control

Technical specifications:

Measurement range: 0 - 400mm
Signal output: model A: 4-20mA, model V: 0-5V, 0-10V, model R: 2K, 5K, 10K
Resolution: infinitesimal
Accuracy: 0.1% FS
Operating voltage: DC 5V, DC 5 - 24V
Cable: 0.7mm imported PA-coated stainless steel
Vibration resistance: (10±1500Hz) 10g
Wire extension force: maximum 700g
Wire extension speed: maximum 1,000mm/s
Operating temperature: -25 - +85°C
Storage temperature: -35 - +100°C
Protection class: IP54

Download more information about this product

The LW series of draw wire displacement/position sensors, is combined with photoelectric and mechanical displacement sensor in anodized aluminum housing and compact construction which ensures reliable operation even under harsh environments

The cable and wire drum are using imported highly flexible stainless steel material which guarantees a long life cycle and high operational reliability, such as strong corrosion resistance, long fatigue life, no stretch and stable wire retraction

With these features, the LW is a rugged, industrial grade sensor that provide long measurement range with high accuracy and high dynamic response

Linear guide-railway system

Hydraulic air cylinder system

Flexible system for forklifts, press machine, lifting machine, pipe-bending machine, bending machine and more

Cranes

Cable winches

Storage position location

Reservoir dam protection system

Gate opening control system

Pressure machinery for testing

Paper machinery, textile machinery

Sheet metal machinery

Packaging machinery

Printing machinery

Level control instrument

Construction machinery

Woodworking machinery

Industrial robots

Injection machines

Elevator, air compressor/hydraulic press

Height measurement machine

X-Y axis displacement and other length of displacement

Liquid level related to size measurement and position control

Measurement range: 0 - 400mm

Signal output: model A: 4-20mA, model V: 0-5V, 0-10V, model R: 2K, 5K, 10K

Resolution: infinitesimal

Accuracy: 0.1% FS

Operating voltage: DC 5V, DC 5 - 24V

Cable: 0.7mm imported PA-coated stainless steel

Vibration resistance: (10±1500Hz) 10g

Wire extension force: maximum 700g

Wire extension speed: maximum 1,000mm/s

Operating temperature: -25 - +85°C

Storage temperature: -35 - +100°C

Protection class: IP54
