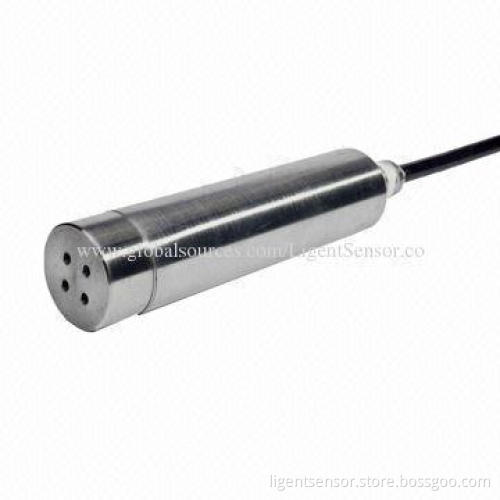

Industrial Level Transmitter, High Accuracy and Stability

Industrial Level Transmitter, High Accuracy and Stability

Get Latest Price

Payment Type:: T/T in Advance, PayPal or Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T in Advance, PayPal or Western Union

Product Description

Features and applications:

High accuracy and stability
Block-proof structure, measurement of viscous substance accepted
High resistant material, suitable for deep-etching medium
Incorporate and detachable transmitters available
High response frequency, various of output signals
Multiple installation methods
LP9Y series level transmitter equipped with the high-performance sensor chip enables low power consumption
Throw-in types, easy to operate, ideal for the application of level measurement for water plant, sewage treatment works, water towers, water tank, coal mine, exploration fields and more.

Technical specifications:

Range: 0 - 1mH2O - 200mH2O
Accuracy: ±0.25% FS, ±0.5% FS
Excitation voltage: 24V DC (10 - 36V DC)
Output signal: 4 - 20mA, 0 - 5V, 0 - 10V
Repeatability: ±0.2% FS
Load resistance: 4000 - 25000Ω
Shunt calibration: 80% ±1%
Overload pressure: 1.5 x FS
Temperature: -40 - +125° (104 - 257°F)
Electrical connection: cable
Process connection: throw-in type, flange fission throw in type, thread screw, customized

High accuracy and stability

Block-proof structure, measurement of viscous substance accepted

High resistant material, suitable for deep-etching medium

Incorporate and detachable transmitters available

High response frequency, various of output signals

Multiple installation methods

LP9Y series level transmitter equipped with the high-performance sensor chip enables low power consumption

Throw-in types, easy to operate, ideal for the application of level measurement for water plant, sewage treatment works, water towers, water tank, coal mine, exploration fields and more.

Range: 0 - 1mH2O - 200mH2O

Accuracy: ±0.25% FS, ±0.5% FS

Excitation voltage: 24V DC (10 - 36V DC)

Output signal: 4 - 20mA, 0 - 5V, 0 - 10V

Repeatability: ±0.2% FS

Load resistance: 4000 - 25000Ω

Shunt calibration: 80% ±1%

Overload pressure: 1.5 x FS

Temperature: -40 - +125° (104 - 257°F)

Electrical connection: cable

Process connection: throw-in type, flange fission throw in type, thread screw, customized
