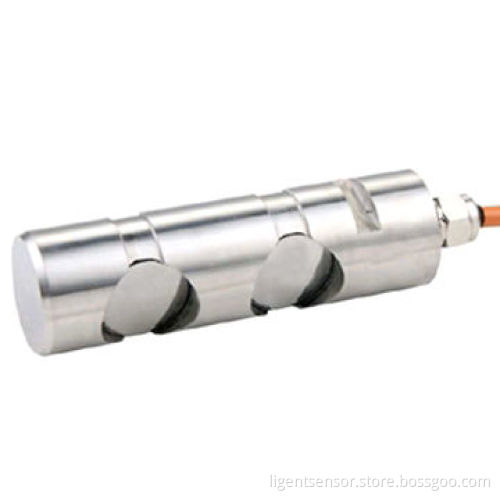

Load Pin with Built-in Amplifier

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T in Advance, T/T, PayPal, Western Union

Product Description

Features and applications:

Materials: stainless steel and double shear beam
Built-in amplifier
Mainly used in loading pin part of tower cranes and hoisting crane for pin function to prevent overload, and ensure safety test in application
Capacity: 1 to 100T

Specifications:

Wire connection:

Materials: stainless steel and double shear beam

Built-in amplifier

Mainly used in loading pin part of tower cranes and hoisting crane for pin function to prevent overload, and ensure safety test in application

Capacity: 1 to 100T

Rated output: 1.0mV/V ± 1%

Zero balance: 2% FS

Non-linearity: 0.5% FS

Hysteresis: 0.5% FS

Repeatability: 0.5% FS

Creep (30 minutes): 0.1% FS

Temperature effect on output: 0.5% FS/10°C

Temperature effect on zero: 0.5% FS/10°C

Input impedance: 350 ±30Ω

Output impedance: 350 ±5Ω

Insulation: ≥5000MΩ/100V DC

Recommended excitation: 5V

Maximum excitation: 10V

Compensated temperature range: -10 to 60°C

Operation temperature range: -20 to 80°C

Safe overload: 200%

Ultimate overload: 500%

Cable size: 5 x 5m

Ex+: red

Ex-: black

Output+: green

Output-: white
