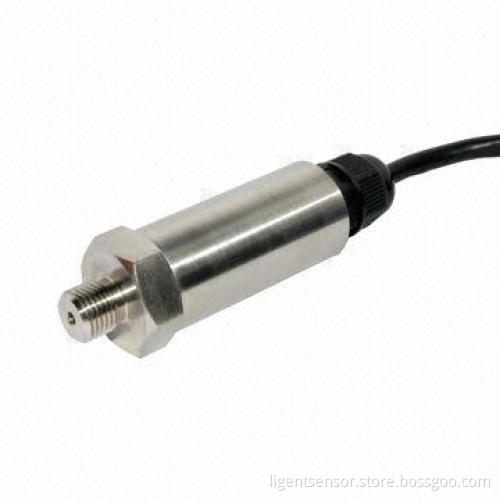

Universal Pressure Transducer with -0.1-200MPa Capacity
  • Universal Pressure Transducer with -0.1-200MPa Capacity
  • Universal Pressure Transducer with -0.1-200MPa Capacity
Universal Pressure Transducer with -0.1-200MPa Capacity
Universal Pressure Transducer with -0.1-200MPa Capacity

Universal Pressure Transducer with -0.1-200MPa Capacity

Get Latest Price
Payment Type:
T/T in Advance, PayPal, Western Union
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T in Advance, PayPal, Western Union
Product Description
Product Description
  • Brief introduction:
    • The model LP9T pressure transducer/transmitter is designed for a wide range of applications, including process control system, liquid level measurement, gas compressors, lubrication systems, natural gas production, chemical processing, waste water treatment, pulp and paper processing, oil production, recovery and others
    • The model LP9T utilizes a pressure sensor packaged in a SST316L housing
    • Pressure is transferred from a stainless steel diaphragm to the sensor
    • A broad compensated temperature range of -20 to 85°C and excellent temperature compensation make this transducer/transmitter very stable fluctuating temperatures
  • Technical specification:
    • Capacity: -0.1-200MPa
    • Accuracy: 0.1% FS, 0.25% FS, 0.5% FS, 1.0% FS
    • Power supply:
      • Sensor: 5-12V DC
      • Transmitter: +24V DC, +12V DC, +5V DC
    • Output signal:
      • Sensor: 1mV/V
      • Transmitter: 0/0.5/1.0-4.0/4.5/5.0/10.0V (3 wires), 4-20mA (2 or 3 wires)
    • Load ability (transmitter):
      • Current model: ≤500
      • Voltage model: ≥100K
    • Zero error: 0.5% FS
    • Full scale error: 1.0% FS
    • Compensate temperature: -10-70°C
    • Working environment: -20-75°C, ≤85% RH
    • Storage environment: -40-85°C, ≤95% RH
    • Safe overload: 150%
    • Ultimate overload: 250%
    • Temperature shift: 0.03%FS/°C
    • Long stability: 0.2%FS/year
    • Case material: 316 stainless steel
    • Process connection (optional): M20 x 1.5, M12 x 1, M10 x 1, 1/4NPT, G1/2, G1/4 or customized
    • Electrical connection: direct cable 1m, M12 x 1 or customized, Hirschman connector
    Download more information about this product
  • The model LP9T pressure transducer/transmitter is designed for a wide range of applications, including process control system, liquid level measurement, gas compressors, lubrication systems, natural gas production, chemical processing, waste water treatment, pulp and paper processing, oil production, recovery and others
  • The model LP9T utilizes a pressure sensor packaged in a SST316L housing
  • Pressure is transferred from a stainless steel diaphragm to the sensor
  • A broad compensated temperature range of -20 to 85°C and excellent temperature compensation make this transducer/transmitter very stable fluctuating temperatures
  • Capacity: -0.1-200MPa
  • Accuracy: 0.1% FS, 0.25% FS, 0.5% FS, 1.0% FS
  • Power supply:
    • Sensor: 5-12V DC
    • Transmitter: +24V DC, +12V DC, +5V DC
  • Output signal:
    • Sensor: 1mV/V
    • Transmitter: 0/0.5/1.0-4.0/4.5/5.0/10.0V (3 wires), 4-20mA (2 or 3 wires)
  • Load ability (transmitter):
    • Current model: ≤500
    • Voltage model: ≥100K
  • Zero error: 0.5% FS
  • Full scale error: 1.0% FS
  • Compensate temperature: -10-70°C
  • Working environment: -20-75°C, ≤85% RH
  • Storage environment: -40-85°C, ≤95% RH
  • Safe overload: 150%
  • Ultimate overload: 250%
  • Temperature shift: 0.03%FS/°C
  • Long stability: 0.2%FS/year
  • Case material: 316 stainless steel
  • Process connection (optional): M20 x 1.5, M12 x 1, M10 x 1, 1/4NPT, G1/2, G1/4 or customized
  • Electrical connection: direct cable 1m, M12 x 1 or customized, Hirschman connector
  • Sensor: 5-12V DC
  • Transmitter: +24V DC, +12V DC, +5V DC
  • Sensor: 1mV/V
  • Transmitter: 0/0.5/1.0-4.0/4.5/5.0/10.0V (3 wires), 4-20mA (2 or 3 wires)
  • Current model: ≤500
  • Voltage model: ≥100K
