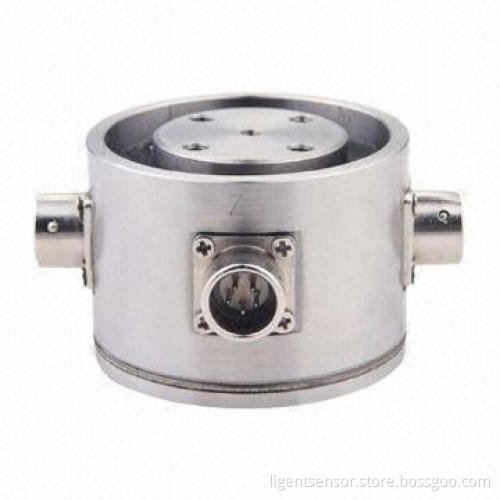

Special Load Cell with 3-axis

Get Latest Price

Payment Type:: Advanced T/T, T/T, Paypal, Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Advanced T/T, T/T, Paypal, Western Union

Product Description

Features and applications:

Small size and stainless steel material
Able to measure the force from three dimensions at the same time, and the mutual interference among three dimensions is very small
Mainly used for force measurement analysis of tools from three dimensions during the process of milling or grinding machine, and the three-axis force measurement of robotic polishing
The size and shape can be different based on the different capacity requirement

Capacity:

X: 20/30/50/100/150/200/300/500kg
Y: 20/30/50/100/150/200/300/500kg
Z: 30/50/100/200/300/500/1,000kg

Mutual interference among three dimensions is smaller than 5%

Specification:

Rated output: 0.5-1.0mV/V, ±10%
Zero balance: ±2% F.S.
Non-linearity: 0.5% F.S
Hysteresis: 0.5% F.S
Repeatability: 0.5% F.S
Creep (30mins): 0.1% F.S
Temperature effect on output: 0.05% F.S/10ºC
Temperature effect on zero: 0.05% F.S/10ºC
Input impedance: 385, ±10Ω
Output impedance: 350, ±3Ω
Insulation: ≥5000MΩ/100V DC
Recommended excitation: 5-10V
Maximum excitation: 15V
Compensated temperature range: -10-60ºC
Operation temperature range: -20-80ºC
Safe over-load: 120%
Ultimate over-load: 150%
Connection: 5 pins
Wire connection:
- Ex+: pin 1
- Ex-: pin 2
- Output+: pin 3
- Output-: pin 5
