Product Description

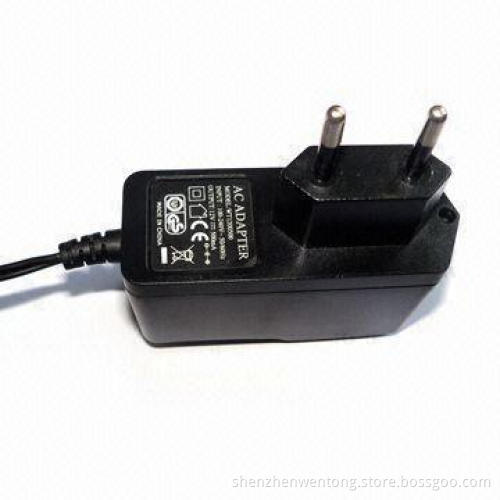

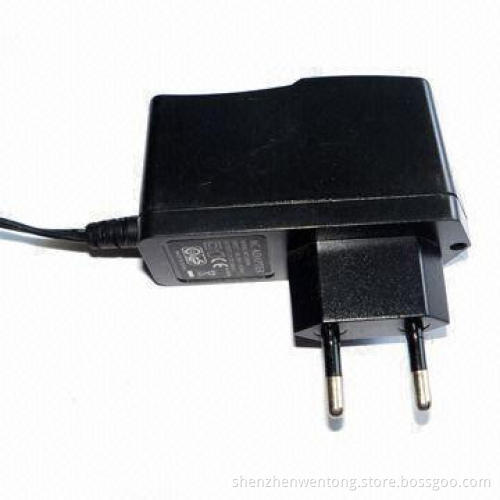

AC/DC adapter

Fashionable appearance, small size

Lower ripple and noise, high efficiency

Have over current protection, over voltage protection, shortcurrent protection

Dimensions: 82 x 43 x 30mm

With 1 year warranty

Input: 100 to 240V AC at 50 to 60Hz

Output: voltage tolerance ± 5%, ripple and noise (mVp-p)<1%, turn on delay time less than 3s, hold up time more than10ms

Protection: short-circuit, overcurrent and overvoltageprotections

Operating temperature: 0 to 40°C, 10 to 90% RH

Storage temperature: -20 to 85°C, 10 to 90% RH, altitude<3,000m

EMC: EN55022B, FCC, GB9254 and VCCI

Safety approvals: UL/CUL, PSE, TUV / GS, CCC, SAA and BSI

Insulation: HI-POT, 3,000V AC, 60s, 10mA

Leakage current: 0.25mA maximum

MTBF: MIL-HDBK-217F, full load, 25, more than 50,000 hours

Usage: security camera, LCD monitor/TV and LED Light
