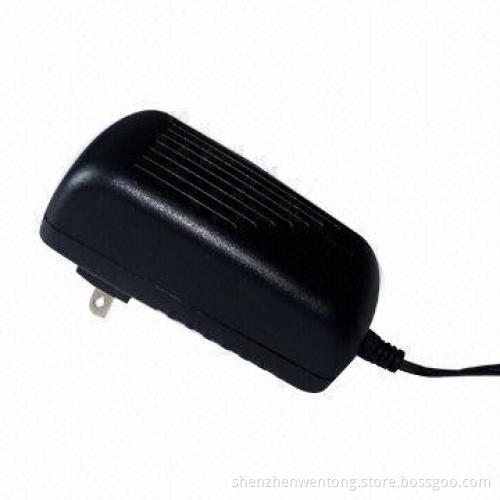

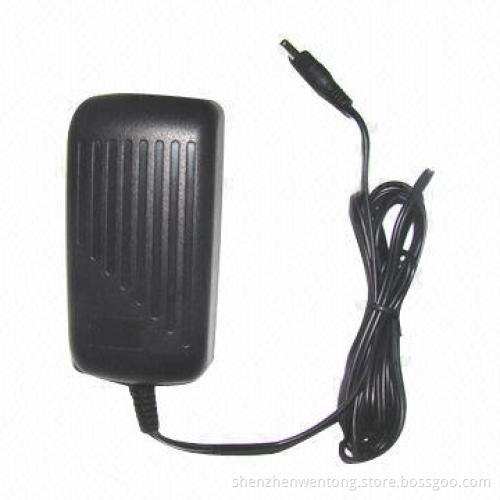

12V/2.5A Wall Mount Switching Power Supply, Over-current and Over-voltage Protection

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T

Product Description

Specifications:

Fashionable appearance and small size

Lower ripple and noise

High-efficiency

Dimensions: 93.5 x 47 x 33mm

One year warranty

Input: 100 to 240V AC, 50/60Hz

Output: 12V at 2.5A

Voltage tolerance: ±5

Ripple and noise: (mVp-p) <1%

Turn on delay time: less than 3 seconds

Hold up time: more than 10 minutes

Protection: short-circuit, over-current and over-voltage

Operating temperatures: 0 to 40°C

Operating humidity: 10 to 90% RH

Storage temperatures: -20 to 85°C

Storage humidity: 10 to 90% RH

Altitude: <3,000m

EMC: EN55022B, FCC, GB9254 and VCCI

Safety approval: UL/CUL, PSE, TUV/GS, CCC, SAA and BSI

Insulation: high pot, 3,000V AC 60s, 10mA

Leakage current: 0.25mA (maximum)

MTBF: MIL-HDBK-217F, full load, 25 and more than 50,000hours

Usage: security cameras, LCD monitors, LCD TV and LEDlights
