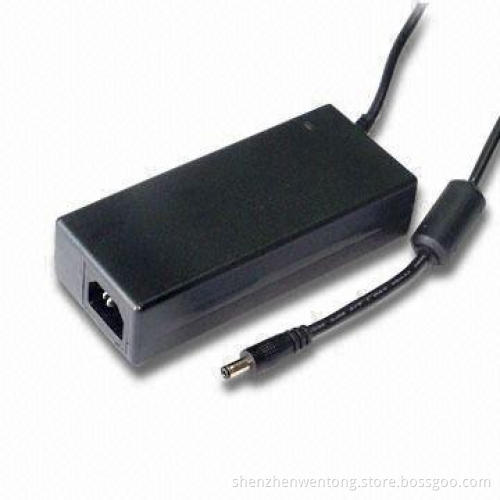

12V, 7A Power Supply with 100 to 240V AC/50/60Hz Input Voltage, Measures 132 x 57 x 31mm

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T

Product Description

Fashionable appearance and small size

Low-ripple and noise

High-efficiency

Over-current, over-voltage and short-current protections

Dimension (L x W x H): 132 x 57 x 31mm

One year warranty

Characteristics:

Input voltage: 100 to 240V AC
Frequency: 50/60Hz
Output power: 12V/7A, 84W
Voltage tolerance: ±5
Ripple and noise: <1% (mVp-p)
Turn on delay time: less than 3 seconds
Hold up time: more than 10ms
Protection: short-circuit protection, over-current protectionand over-voltage protection
Operating temperature: 0 to 40 degrees Celsius, 10 to 90%RH
Storage temperature: -20 to 85 degrees Celsius, 10 to 90%RH
Altitude: <3,000m
EMC: EN55022B, FCC, GB9254 and VCCI
Insulation: hi-pot, 3,000V AC, 60s, 10mA
Leakage current: 0.25mA (maximum)
MTBF: MIL-HDBK-217F, full load, 25 and more than 50,000hours
Configuration: IEC320-C6, IEC320-C8, IEC320-C14
Used for security camera, LCD monitors, LCD TV and LEDlight
Packaging: inner white box and standard carton for export
