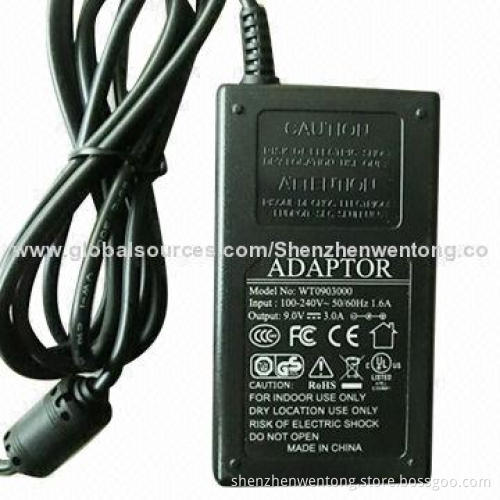

9V 3A Desktop Type Switching Power Supply with Mini Sized 88 x 50 x 31mm
  • 9V 3A Desktop Type Switching Power Supply with Mini Sized 88 x 50 x 31mm
  • 9V 3A Desktop Type Switching Power Supply with Mini Sized 88 x 50 x 31mm
9V 3A Desktop Type Switching Power Supply with Mini Sized 88 x 50 x 31mm
9V 3A Desktop Type Switching Power Supply with Mini Sized 88 x 50 x 31mm

9V 3A Desktop Type Switching Power Supply with Mini Sized 88 x 50 x 31mm

Get Latest Price
Payment Type:
Telegraphic Transfer (TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer (TT,T/T)
Product Description
Product Description
  • Specifications:
    • Input voltage: 100 to 240V AC, 50/60Hz
    • Output: 9V/3A
    • Voltage tolerance: ±5%, ripple and noise (mVp-p) less than 1%, turn on delay time less than 3 seconds, hold up time for more than 10ms
    • 9V 3A mini desktop type
    • Input connector: C14
    • DC cord: 1.2/1.5/1.8m
    • DC jack: 5.5 x 2.1/5.5 x 2.5mm
    • Configuration: IEC320 to C6, IEC320 to C8, IEC320 to C14
    • Dimensions: 88 x 50 x 31mm
    • Over-voltage protection: 120% (minimum)
    • Over-current protection: 120% (minimum)
    • Short-circuit protection: automatic recovery
    • Loading regulation: ±5%
    • Operating temperature: 0 to 40°C
    • Storage temperature: -20 to 85°C
    • Operating relative humidity range: 5 to 95% RH
    • Insulation: Hi-pot 3,000V AC, 60s, 10mA
    • Leakage current: 0.25mA (maximum)
    • MTBF: more than 50,000 hours
    • With UL/cUL, PSE, GS, CE, CB, FCC, SAA, CCC and ERP and C-Tick marks
  • Applications:
    • Digital cameras
    • CD-ROMs, hubs and ADSL APs
    • Communication terminals
    • Tester machines
    • Any portable devices or machines
  • Input voltage: 100 to 240V AC, 50/60Hz
  • Output: 9V/3A
  • Voltage tolerance: ±5%, ripple and noise (mVp-p) less than 1%, turn on delay time less than 3 seconds, hold up time for more than 10ms
  • 9V 3A mini desktop type
  • Input connector: C14
  • DC cord: 1.2/1.5/1.8m
  • DC jack: 5.5 x 2.1/5.5 x 2.5mm
  • Configuration: IEC320 to C6, IEC320 to C8, IEC320 to C14
  • Dimensions: 88 x 50 x 31mm
  • Over-voltage protection: 120% (minimum)
  • Over-current protection: 120% (minimum)
  • Short-circuit protection: automatic recovery
  • Loading regulation: ±5%
  • Operating temperature: 0 to 40°C
  • Storage temperature: -20 to 85°C
  • Operating relative humidity range: 5 to 95% RH
  • Insulation: Hi-pot 3,000V AC, 60s, 10mA
  • Leakage current: 0.25mA (maximum)
  • MTBF: more than 50,000 hours
  • With UL/cUL, PSE, GS, CE, CB, FCC, SAA, CCC and ERP and C-Tick marks
  • Digital cameras
  • CD-ROMs, hubs and ADSL APs
  • Communication terminals
  • Tester machines
  • Any portable devices or machines
