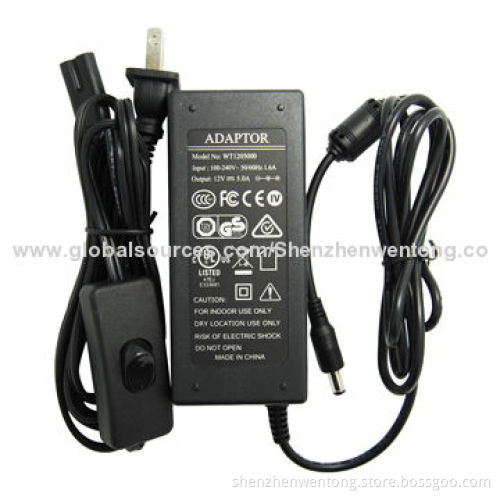

12V DC/5A Switching Power Supply with Switch on AC Cord, USA Plug, C8 Socket

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Specifications:

Input voltage: 100 to 240V AC at 50/60Hz
Output voltage tolerance: ±5%, ripple and noise (mVp-p) less than 1%, turn on delay time more than 3 seconds, hold up time more than 10ms
Protections: short-circuit, over-current, over-voltage
Operating temperature: 0 to 40°C, 10 to 90% RH
Storage temperature: -20 to 85°C, 10 to 90% RH, altitude less than 3,000m
EMC: EN55022B, FCC, GB9254, VCCI
Safety accord: UL/cUL, TUV/GS, CCC, SAA
Insulation: Hi-pot 3,000V AC, 60 seconds, 10mA
Leakage current: 0.25mA (maximum)
MTBF: more than 50,000 hours
Configuration: IEC320 to C6, IEC320 to C8
Dimensions: 120 x 55 x 32mm
Desktop type: 5.5 x 2.5 x 11mm
