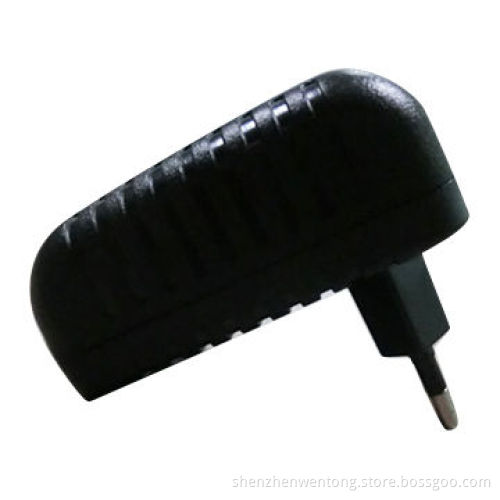

5V/2A Power Supply with REACH, CE, LVD, CE, EMC, TUV, GS Marks

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T

Product Description

Characteristics:

Input voltages: 100 to 240V AC, 50/60Hz
Output voltage: 5V, 2A
Output: voltage tolerance ±5%, ripple and noise (mVp-p)<1%, turn on delay time less than 3S, hold up time more than 10mS
Fashionable appearance, small size
Lower ripple and noise, high-efficiency
Dimensions (L x W x H): 74 x 40 x 30mm
Protections: short-circuit, over-current and over-voltage protection
Operating temperature range: 0 to 40°C, 10 to 90% RH
Storage temperature range: -20 to 85°C, 10 to 90% RH, altitude: <3,000MEMC: EN55022B, FCC, GB9254 and VCCI
Certificates: UL/CUL, PSE, TUV/GS, CCC, CE EMC,CE LVD
Insulation: hi-pot, 3,000
Vac 60S 10mA
Leakage current: 0.25mA maximum
MTBF: MIL-HDBK-217F, full load, 25, more than 50,000 hours
Usage: security camera, LCD monitor, LCD TV and LED light
