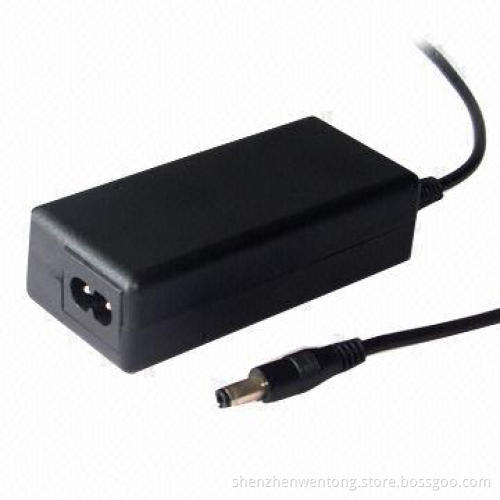

DC Power Supply with 9V/2.5A Output and C6 C8 AC Input, Measures 96 x 43.5 x 28.5mm

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T

Product Description

Specifications:

Applications:

DC jack: 5.5 x 2.1, 5.5 x 2.5 and 4.0 x 1.7mm

Dimensions: 96 x 43.5 x 28.5mm

Warranty: 2 years

Input voltages: 100 to 240V AC

Frequency: 50 to 60Hz

Output: 9V and 2.5A

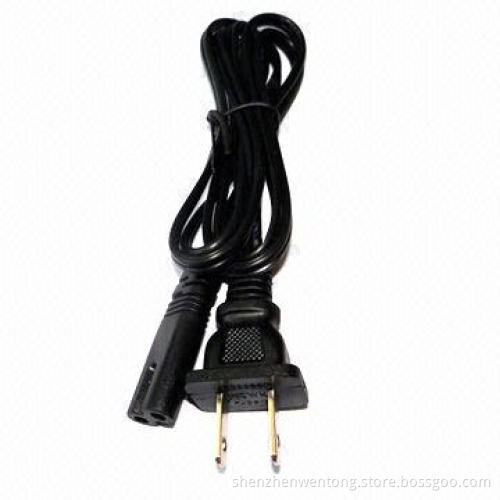

AC input: IEC320-C6 and IEC320-C8

Voltage tolerance: ±5%, ripple and noise (mVp to p)<1%

Turn on delay time, less than 3s and hold up time >10mS

Over-voltage protection: 120% (minimum)

Over-current protection: 120% (minimum)

Short-circuit protection: automatic recovery

Loading regulation: ±5%

Operating temperatures: 0 to 40°C

Storage temperatures: -20 to 85°C

Operating relative humidity range: 5 to 95% RH

Insulation: Hi-pot, 3,000V AC, 60s and 10mA

Leakage current: 0.25mA maximum

MTBF: >50,000 hours

With UL/CUL, PSE, GS, CE, CB, FCC, SAA, CCC, ERP and C-Tickmarks

Digital camera

CD-ROMs, hubs and ADSL APs

Communication terminals

Tester machine

Any portable device or machine
