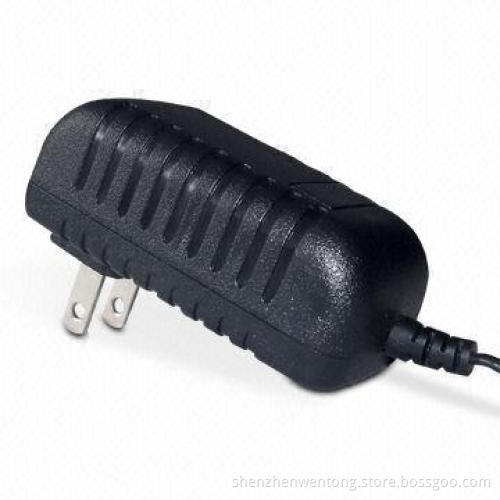

DC Power Supply with 7V/1.2A Output and 5.5 x 2.1mm DC Jack, Used for MID, CCTV

DC Power Supply with 7V/1.2A Output and 5.5 x 2.1mm DC Jack, Used for MID, CCTV

Get Latest Price

Payment Type:: T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T

Product Description

Specifications:

Output: 7V/1.2A
Input voltage: 100 to 240V AC
Frequency: 50/60Hz
Output power: 8.4W
Output voltage: 3 to 24V
Voltage tolerance: ±5%, ripple and noise (mVp-p) lessthan 1%, turn on delay time less than 3 seconds, hold up time morethan 10ms
Over-voltage protection: 120% (minimum)
Over-current protection: 120% (minimum)
Short-circuit protection: automatic recovery
Loading regulation: ±5%
Operating temperature: 0 to 40°C
Storage temperature: -20 to 85°C
Operating relative humidity range: 5 to 95% RH
Insulation resistance: 500V DC, 100MΩ (minimum)
Insulation: high-pot, 3,000V AC, 60 seconds, 10mA
Leakage current: 0.25mA (maximum)
MTBF: more than 50,000 hours
Configuration: wall type with American plug
DC jack size: 5.5 x 2.1, 5.5 x 2.5 or 4.0 x 1.7mm
Size: 74 x 40 x 30mm
Certificates: UL/cUL, PSE, GS, CE, CB, FCC, SAA, CCC, ErP andC-TICK

Applications:

Digital cameras
CD-ROMs, hubs and ADSL APs
Communication terminals
Tester machines
Any portable device or machines

All trademarks shown here are for reference purposesonly. They are the property of their respective owners, and we arenot authorized to sell items bearing such trademarks.
