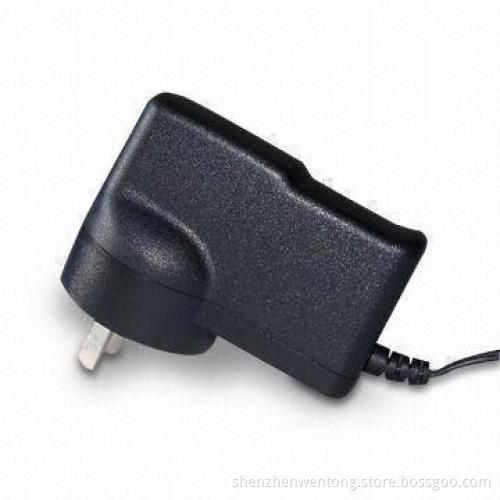

SAA Power Supply with 100 to 240V Input Voltage, 50/60Hz Frequency and 5.5 x 2.1mm DC Jack
  • SAA Power Supply with 100 to 240V Input Voltage, 50/60Hz Frequency and 5.5 x 2.1mm DC Jack
  • SAA Power Supply with 100 to 240V Input Voltage, 50/60Hz Frequency and 5.5 x 2.1mm DC Jack
SAA Power Supply with 100 to 240V Input Voltage, 50/60Hz Frequency and 5.5 x 2.1mm DC Jack
SAA Power Supply with 100 to 240V Input Voltage, 50/60Hz Frequency and 5.5 x 2.1mm DC Jack

SAA Power Supply with 100 to 240V Input Voltage, 50/60Hz Frequency and 5.5 x 2.1mm DC Jack

Get Latest Price
Payment Type:
T/T
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T
Product Description
Product Description
  • Specifications:
    • Configuration: wall type with SAA plug
    • Output: 6V/1A
    • Input voltages: 100 to 240V AC
    • Frequency range: 50 to 60Hz
    • Output power: 6W
    • Output voltages: 3 to 24V
    • Voltage tolerance: ±5%, ripple and noise (mVp-p) lessthan 1%, turn on delay time less than 3 seconds
    • Hold up time: more than 10m seconds
  • Protection:
    • Over-voltage: 120% (minimum)
    • Over-current: 120% (minimum)
    • Short-circuit: automatic recovery
  • Loading regulation: ±5%
  • Temperatures:
    • Operating: 0 to 40°C
    • Storage: -20 to 85°C
  • Operating relative humidity range: 5 to 95% RH
  • Insulation resistance: 500V DC, 100MΩ (minimum)
  • Insulation: high-pot, 3,000V AC, 60 seconds, 10mA
  • Leakage current: 0.25mA (maximum)
  • MTBF: more than 50,000 hours
  • Certifications: UL, cUL, PSE, GS, CE, CB, FCC, SAA, CCC, ErPand C-TICK marks

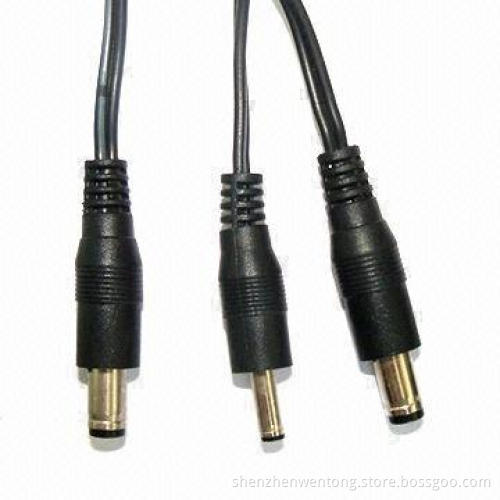

  • DC jack: 5.5 x 2.1, 5.5 x 2.5 or 4.0 x 1.7mm
  • Dimensions: 74 x 40 x 30mm
  • Applications:
    • Digital cameras
    • CD-ROMs, hubs and ADSL APs
    • Communication terminals
    • Tester machines
    • Any portable device or machines
  • Configuration: wall type with SAA plug
  • Output: 6V/1A
  • Input voltages: 100 to 240V AC
  • Frequency range: 50 to 60Hz
  • Output power: 6W
  • Output voltages: 3 to 24V
  • Voltage tolerance: ±5%, ripple and noise (mVp-p) lessthan 1%, turn on delay time less than 3 seconds
  • Hold up time: more than 10m seconds
  • Over-voltage: 120% (minimum)
  • Over-current: 120% (minimum)
  • Short-circuit: automatic recovery
  • Operating: 0 to 40°C
  • Storage: -20 to 85°C
  • Digital cameras
  • CD-ROMs, hubs and ADSL APs
  • Communication terminals
  • Tester machines
  • Any portable device or machines
