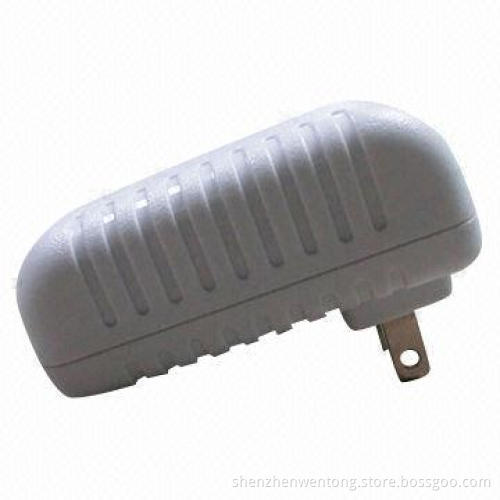

9V/2A Power Adapter with US Plug, Measures 82 x 43 x 30mm

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T

Product Description

Features:

Fashionable design
Small size
Lower ripple and noise
High-efficiency
Meets EMC EN55022B, FCC, GB9254 and VCCI standards
With UL/cUL, PSE, TUV, GS, CE, CCC, SAA marks
Input voltage range: 100 to 240V AC, 50/60Hz
Output voltage: 9V/2A
Output voltage tolerance: ±5%, ripple and noise (mVp-p) <1%, turn-on delay time less than 3s, hold up time more than 10ms
Protections: short-circuit, over-current and over-voltage
Altitude: <3,000m
Insulation: hipot, 3,000V AC, 60s and 10mA
Leakage current: 0.25mA maximum
MTBF: MIL-HDBK-217F, full load, 25, more than 50,000 hours
Usages: security camera, LCD monitor/TV and LED light
Operating temperature range: 0 to 40°C, 10 to 90% RH
Storage temperature range: -20 to 85°C, 10 to 90% RH
DC cord lengths: 1.2, 1.5, 1.8 and 2m
DC plugs: 5.5 x 2.1, 5.5 x 2.5 and 3.5 x 1.35mm
Dimensions (L x W x H): 82 x 43 x 30mm
