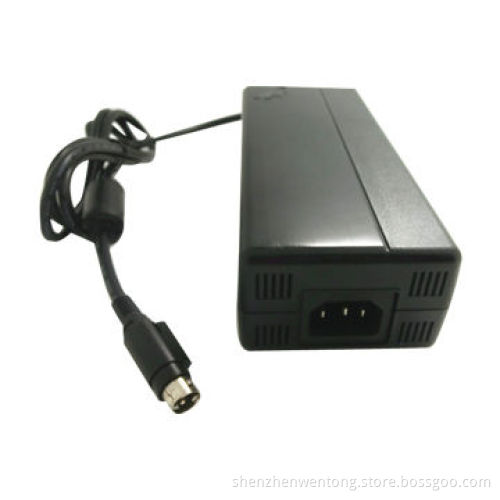

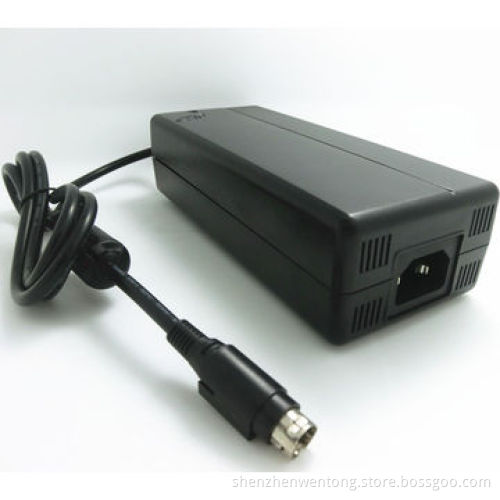

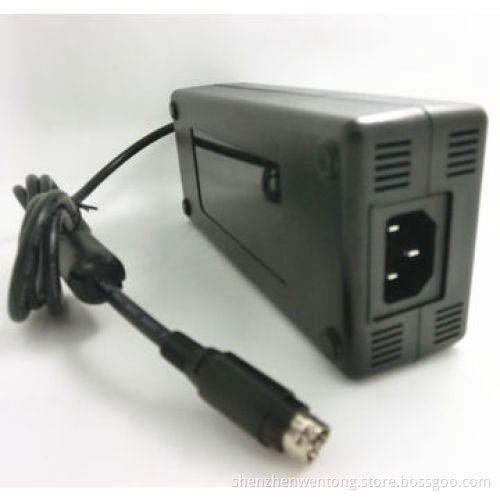

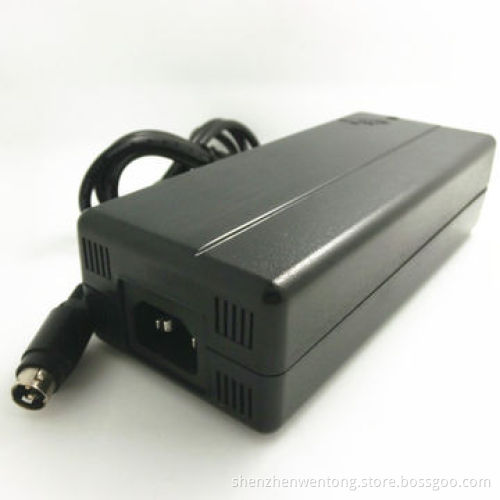

150W Switching Universal DC Power Adapter with PFC, CE/FCC/RoHS/GS/CUL

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Features:

Characteristics:

Fashionable appearance and small size

Low-ripple and noise

High-efficiency

Over-current protection, over-voltage protection and short-current protection

Dimensions (L x W x H): 170 x 72 x 41.5mm

Input voltages: 100 to 240V AC

Frequency: 50/60Hz

Output power: 150W 12V DC 12.5A

Voltage tolerance: ± 5

Ripple and noise: <1% (mVp-p)

Turn on delay time: less than 3 seconds

Hold up time: more than 10ms

Operating temperatures: 0 to 40°C, 10 to 90% RH

Storage temperatures: -20 to 85°C, 10 to 90% RH

Altitude: <3,000m

EMC: EN55022B, FCC, GB9254 and VCCI

Safety certificates: UL/CUL, PSE, TUV/GS, CCC, SAA and BSI

Insulation: high-pot, 3,000V AC 60 seconds, 10mA

Leakage current: 0.25mA (maximum)

MTBF: MIL-HDBK-217F, full-load, 25 and more than 50,000hours

Configuration: IEC320-C6, IEC320-C8, IEC320-C14

Usage: security camera, LCD monitor, LCD TV, LED light

Packing: inner white box packing, standard carton packing for export
