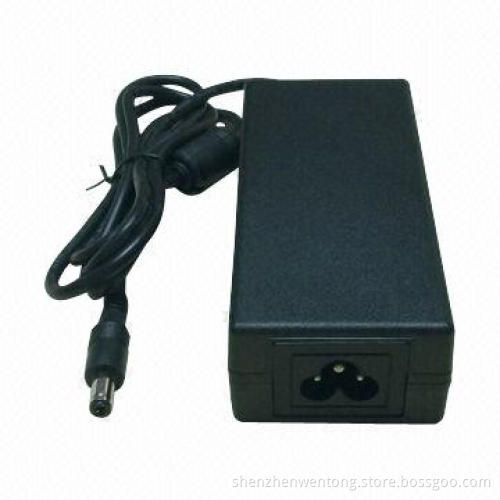

12V/5A DC Power Adapter with 100 to 240V AC, 50/60Hz Input Voltage, Measures 120 x 53 x 32mm

12V/5A DC Power Adapter with 100 to 240V AC, 50/60Hz Input Voltage, Measures 120 x 53 x 32mm

Get Latest Price

Payment Type:: T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T

Product Description

Characteristics:

Small in size, high efficiency
Input voltage: 100 to 240V AC 50/60Hz
Output voltage: 12V, 5A, 60W
Output voltage tolerance: ± 5%
Ripple and noise (Vp-p): <1%
Turn on delay time: less than 3s
Hold up time: more than 10 minutes
Operating temperature: 0 to 40°C, 10 to 90% RH
Storage temperatures: -20 to 85°C, 10 to 90% RH, altitude<3,000M
EMC: EN55022B, FCC, GB9254, VCCI
With UL/cUL, PSE, TUV/GS, CCC, SAA and BSI marks
Insulation: hipot, 3,000V AC, 60s, 10mA
Leakage current: 0.25mA (maximum)
MTBF: MIL-HDBK-217F, full load, 25, more than 50,000 hours
Configuration: IEC320-C6, IEC320-C8, IEC320-C14
Usage: security camera, LCD monitor, LCD TV and LED Light
Packaging: inner white box, standard carton package forexport
Fashionable appearance
Lower ripple and noise
With over-current, over-voltage and short-currentprotections
Dimensions (L x W x H): 120 x 53 x 32mm

All trademarks shown here are for reference purposesonly. They are the property of their respective owners, and we arenot authorized to sell items bearing such trademarks.

Small in size, high efficiency

Input voltage: 100 to 240V AC 50/60Hz

Output voltage: 12V, 5A, 60W

Output voltage tolerance: ± 5%

Ripple and noise (Vp-p): <1%

Turn on delay time: less than 3s

Hold up time: more than 10 minutes

Operating temperature: 0 to 40°C, 10 to 90% RH

Storage temperatures: -20 to 85°C, 10 to 90% RH, altitude<3,000M

EMC: EN55022B, FCC, GB9254, VCCI

With UL/cUL, PSE, TUV/GS, CCC, SAA and BSI marks

Insulation: hipot, 3,000V AC, 60s, 10mA

Leakage current: 0.25mA (maximum)

MTBF: MIL-HDBK-217F, full load, 25, more than 50,000 hours

Configuration: IEC320-C6, IEC320-C8, IEC320-C14

Usage: security camera, LCD monitor, LCD TV and LED Light

Packaging: inner white box, standard carton package forexport

Fashionable appearance

Lower ripple and noise

With over-current, over-voltage and short-currentprotections

Dimensions (L x W x H): 120 x 53 x 32mm
