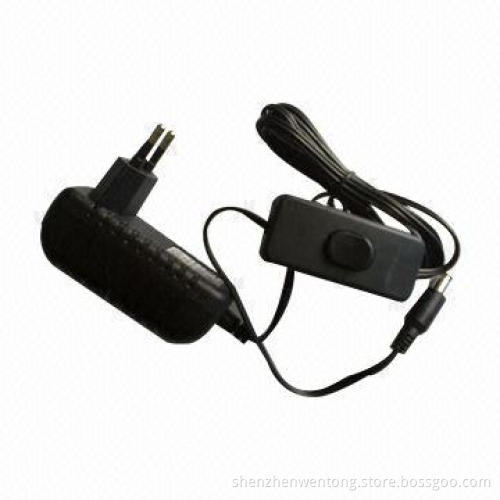

12W LED Power Supply with EU Plug

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T

Product Description

Input: 100 to 240V AC, 50/60Hz

Output power: 12W

Output voltages: 5 to 24V DC

Output current range: 100 to 1,200mA±3%

Overload protection

Output over voltage protection

Short-circuit protection: automatic recovery

DC socket: optional

Over-voltage protection: 120% (minimum)

Over-current protection: 120% (minimum)

Safety approvals:

UL/cUL, PSE, GS, CE, CB, FCC, SAA, CCC, ERP and C-tickmarks

No load power consumption: d0.3W at rated voltage

Ripple and noise: less than 1% (mvp-p)

Operating temperatures: 0 to 40 degree Celsius

Storage temperatures: -20 to 85 degree Celsius

Operating relative humidity range: 5 to 95% RH

Insulation: hi-pot, 3,000V AC, 60 seconds, 10mA

Leakage current: 0.25mA (maximum)

Dimensions: 74 x 40 x 30mm

DC jack: 5.5 x 2.1 x 11mm

Net weight: about 75g

Colors: black/white

MTBF: more than 50,000 hours

Delivery: 7 to 15 working days in punctual

Minimum order: 1,000 units
