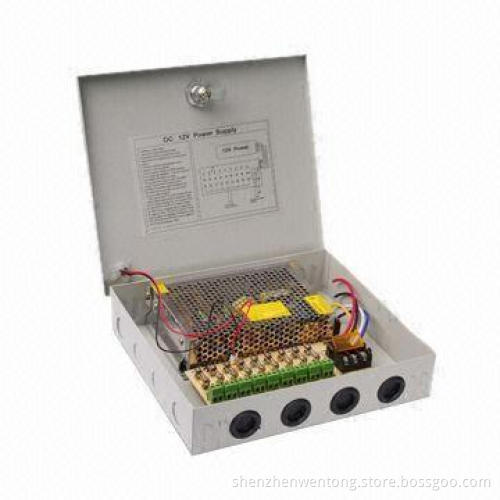

240W Series Multichannel Dedicated CCTV Power Supply
  • 240W Series Multichannel Dedicated CCTV Power Supply
  • 240W Series Multichannel Dedicated CCTV Power Supply
240W Series Multichannel Dedicated CCTV Power Supply
240W Series Multichannel Dedicated CCTV Power Supply

240W Series Multichannel Dedicated CCTV Power Supply

Get Latest Price
Payment Type:
Telegraphic Transfer in Advance (Advance TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer in Advance (Advance TT, T/T)
Product Description
Product Description
  • Maximum output power: 240W
  • Input voltage: 90 to 132V AC or 180 to 240V AC (selectable byswitch)
  • Frequency: 50 to 60Hz
  • Current (full load):
    • Maximum 2.5A/115V AC
    • Maximum of 1.6A/230V AC
  • Inrush current: 25A (115V AC), 35A (230V AC) (maximum)
  • Leakage current: 3.5mA/240V AC
  • Output voltage: 5, 12, 24V DC
  • Voltage accuracy: ±3, ±2.5 and ±1.25%
  • Maximum current: 30, 20, 10A
  • Line regulation: ±0.5%
  • Load regulation: ±1%
  • Minimum load: 0%
  • Typical efficiency: 80, 84 and 89%
  • Adjustable extent of output voltage: 4.5 to 6.5, 9 to 15, 22 to27V DC
  • Ripple/noise (maximum): 200, 150 and 150mV
  • Hold-up time: 20ms, (minutes)
  • Switching frequency: 60kHz
  • Protection:
    • Overload: 105 to 150% rated output power
    • Protection type: auto recovery
    • Short circuit: auto recovery
  • Electric strength:
    • Input-output: 1,500V AC
    • Input-FG: 500V AC
    • Output-FG: 500V AC
  • Isolation resistance:
    • Input-output, input-FG, output-FG: 100M©/500V DC
  • Environments:
    • Operating temperature: -10 to 50 degrees Celsius (refer to thepoint 4 output load duration curve)
    • Storage temperature: -25 to 85 degrees Celsius
    • Temperature coefficient: ±0.03% degrees Celsius (0 toless than 50 degrees Celsius)
    • Humidity: 95% RH
    • MTBF: more than 50,000 hours at 25 degrees Celsius(MIL-HDBK-217F)
    • Vibration: 10 to 500Hz, 2G, 10min/cycle, 60 minimum each alongX, Y and Z axis
    • Cooling method: naturally air-cooled
  • Safety standards:
    • UL60950, EN60950
    • EMI: EN55011 class B
    • EN55022 class B
    • EMS immunity: EN55024, EN61000-6-2
    • Harmonic current: EN61000-3-2
  • Maximum 2.5A/115V AC
  • Maximum of 1.6A/230V AC
  • Overload: 105 to 150% rated output power
  • Protection type: auto recovery
  • Short circuit: auto recovery
  • Input-output: 1,500V AC
  • Input-FG: 500V AC
  • Output-FG: 500V AC
  • Input-output, input-FG, output-FG: 100M©/500V DC
  • Operating temperature: -10 to 50 degrees Celsius (refer to thepoint 4 output load duration curve)
  • Storage temperature: -25 to 85 degrees Celsius
  • Temperature coefficient: ±0.03% degrees Celsius (0 toless than 50 degrees Celsius)
  • Humidity: 95% RH
  • MTBF: more than 50,000 hours at 25 degrees Celsius(MIL-HDBK-217F)
  • Vibration: 10 to 500Hz, 2G, 10min/cycle, 60 minimum each alongX, Y and Z axis
  • Cooling method: naturally air-cooled
  • UL60950, EN60950
  • EMI: EN55011 class B
  • EN55022 class B
  • EMS immunity: EN55024, EN61000-6-2
  • Harmonic current: EN61000-3-2
