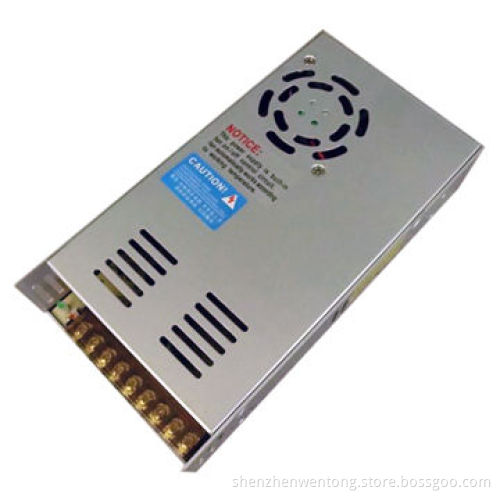

9-channel CCTV Adapter, 360W Output, 5V DC/12V DC/24V DC Output Voltage
  • 9-channel CCTV Adapter, 360W Output, 5V DC/12V DC/24V DC Output Voltage
  • 9-channel CCTV Adapter, 360W Output, 5V DC/12V DC/24V DC Output Voltage
9-channel CCTV Adapter, 360W Output, 5V DC/12V DC/24V DC Output Voltage
9-channel CCTV Adapter, 360W Output, 5V DC/12V DC/24V DC Output Voltage

9-channel CCTV Adapter, 360W Output, 5V DC/12V DC/24V DC Output Voltage

Get Latest Price
Payment Type:
Telegraphic Transfer (TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer (TT,T/T)
Product Description
Product Description
  • Specifications:
    • Maximum output power: 360W
    • Input voltage: 90 to 132V AC or 180 to 240V AC (optional by switch)
    • Frequency: 50 to 60Hz
    • Current (full load): 6.5A maximum (115V AC), 4A maximum (230V AC)
    • In-rush current: <30A maximum (115V AC)/35A maximum (230V AC)
    • Leakage current: <3.5mA/240V AC
    • Output voltage: 5V DC/12V DC/24V DC
    • Voltage accuracy: ±3%, ±2.5%, ±1.25%
    • Maximum current: 40/30/15A
    • Line regulation: ±0.5%, ±0.5%, ±0.5%
    • Load regulation: ±1%, ±1%, ±1%
    • Minimum load: 0%, 0%, 0%
    • Typical efficiency: 80/84/89%
    • Adjustable extent of output voltage: 4.5 to 6.5/9 to 15V DC/22 to 27
    • Ripple and noise (maximum): 150mV/150mV/150mV
    • Hold-up time: 20ms minimum
    • Switching frequency: 30kHz
    • Protection overload: 105 to 150%
    • Rated output power (1.05-1.3)
    • Protection type: auto recovery
    • Short-circuit protection type: auto recovery
    • Over temperature: RTH1≥65°C, (fan on), ≤55°C (fan off), OTP≥ 80°C
    • Protection type: auto recovery
    • Electric strength: 1500V AC input-FG: 500V AC output
    • FG: 500V AC
    • Isolation resistance: input-FG, output-FG: 100MΩ/500V DC
  • Environment:
    • Operating temperature: -10 to 50°C (refer to point 4 outputs load deration curve)Storage temperature: -25 to 85°C
    • Temperature coefficient: ±0.03%°C (0 to less than 50°C)
    • Humidity: 95%
    • RHMTBF: >50,000hrs at 25°C (MIL-HDBK-217F)
    • Vibration: 10 to 500Hz, 2G 10mins/1 cycle, 60mins each along X, Y, Z axes
    • Cooling method: natural air-cooled
  • Safety and EMC:
    • Safety standards: UL60950, EN60950EMI: EN55011 class BEN55022 class BEMS immunity: EN55024 EN61000-6-2Harmonic current: EN61000-3-2
  • Maximum output power: 360W
  • Input voltage: 90 to 132V AC or 180 to 240V AC (optional by switch)
  • Frequency: 50 to 60Hz
  • Current (full load): 6.5A maximum (115V AC), 4A maximum (230V AC)
  • In-rush current: <30A maximum (115V AC)/35A maximum (230V AC)
  • Leakage current: <3.5mA/240V AC
  • Output voltage: 5V DC/12V DC/24V DC
  • Voltage accuracy: ±3%, ±2.5%, ±1.25%
  • Maximum current: 40/30/15A
  • Line regulation: ±0.5%, ±0.5%, ±0.5%
  • Load regulation: ±1%, ±1%, ±1%
  • Minimum load: 0%, 0%, 0%
  • Typical efficiency: 80/84/89%
  • Adjustable extent of output voltage: 4.5 to 6.5/9 to 15V DC/22 to 27
  • Ripple and noise (maximum): 150mV/150mV/150mV
  • Hold-up time: 20ms minimum
  • Switching frequency: 30kHz
  • Protection overload: 105 to 150%
  • Rated output power (1.05-1.3)
  • Protection type: auto recovery
  • Short-circuit protection type: auto recovery
  • Over temperature: RTH1≥65°C, (fan on), ≤55°C (fan off), OTP≥ 80°C
  • Protection type: auto recovery
  • Electric strength: 1500V AC input-FG: 500V AC output
  • FG: 500V AC
  • Isolation resistance: input-FG, output-FG: 100MΩ/500V DC
  • Operating temperature: -10 to 50°C (refer to point 4 outputs load deration curve)Storage temperature: -25 to 85°C
  • Temperature coefficient: ±0.03%°C (0 to less than 50°C)
  • Humidity: 95%
  • RHMTBF: >50,000hrs at 25°C (MIL-HDBK-217F)
  • Vibration: 10 to 500Hz, 2G 10mins/1 cycle, 60mins each along X, Y, Z axes
  • Cooling method: natural air-cooled
  • Safety standards: UL60950, EN60950EMI: EN55011 class BEN55022 class BEMS immunity: EN55024 EN61000-6-2Harmonic current: EN61000-3-2
