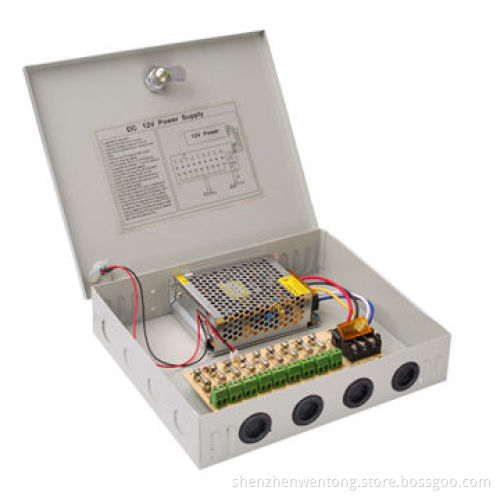

Power Supply, Metal Case, for CCTV Security Devices, Long-term Mode, Auto-recovery

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Letter of Credit (LC, L/C)

Product Description

Specifications:

Input:
- Voltage: 90 to 264V AC
- Frequency range: 50/60Hz at <1A
- Line regulation range: ±0.5 (maximum)
Output:
- Line regulation range: ±0.5% (maximum)
- Ripple and noise (mVp-p): <1% of output voltage
- Adjustable range of output voltage: ±3%
- Start-up time: d1 second (input 264V AC and IO: 100%)
- Hold-up time: e20ms (input 240V AC and Io =100%)
Protections:
- Overloading protection: 115 to 150% of rated power, when happened, power shuts down automatically, when trouble removed power recovers itself
- Over-voltage protection: 130 to 150% of rated voltage
- Over-current protection
Insulation intensity:
- Input/output: 1,500V/5mA, 60 seconds
- Input/ground: 1,500V/5mA, 60 seconds
- Output/ground: 500V/5mA, 60 seconds
- Input/output: 1,500V/5mA, 60 seconds
- Input/ground: 1,500V/5mA, 60 seconds
- Output/ground: 1,500V/5mA, 60 seconds
Environment requirement:
- Operating temperature: 0 to 40°C
- Operating humidity range: 10 to 90% RH (no freezing dew)
- Storage temperatures: -20 to 85°C
- Storage humidity range: 10 to 95% RH (no freezing dew)
Elevation: d3,000m
Dimensions (L x W x H): 143 x 59 x 39mm
Weight: 300g
EMC: EN55022 and GB3954

Input:

Output:

Protections:

Overloading protection: 115 to 150% of rated power, when happened, power shuts down automatically, when trouble removed power recovers itself
Over-voltage protection: 130 to 150% of rated voltage
Over-current protection

Insulation intensity:
