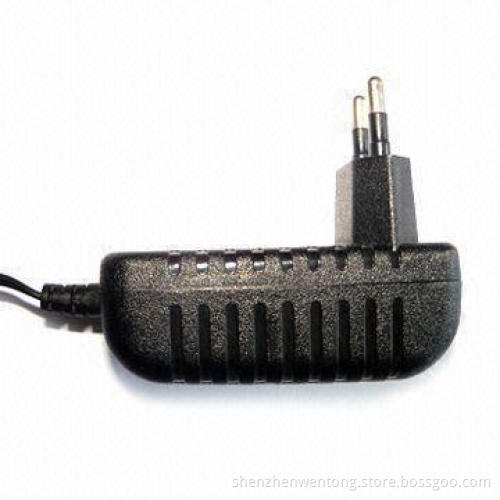

Power Adapter with EU Plug, 12V/1A Output Voltage and 100 to 240V AC Input Voltages

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T

Product Description

Fashionable appearance, small size

Lower ripple and noise, high efficiency

Dimensions (L x W x H): 74 x 40 x 30mm

Warranty: 1 year

Characteristics:

Input voltages: 100 to 240V AC, 50/60Hz
Output voltage: 12V, 1.5A
Output: voltage tolerance ±5%, ripple and noise(mVp-p)<1%, turn on delay time less than 3S, hold up time morethan 10mS
Protection: short-circuit, over-current and over-voltageprotection
Operating temperatures: 0 to 40°C, 10 to 90% RH
Storage temperatures: -20 to 85°C, 10 to 90% RH, altitude:<3,000M
EMC: EN55022B, FCC, GB9254 and VCCI
Safety approval: UL/CUL, PSE, TUV/GS, CCC, SAA and BSI
Insulation: Hi-pot, 3,000Vac 60S 10mA
Leakage current: 0.25mA maximum
MTBF: MIL-HDBK-217F, full load, 25, more than 50,000 hours
Usage: security camera, LCD monitor, LCD TV and LED Light
