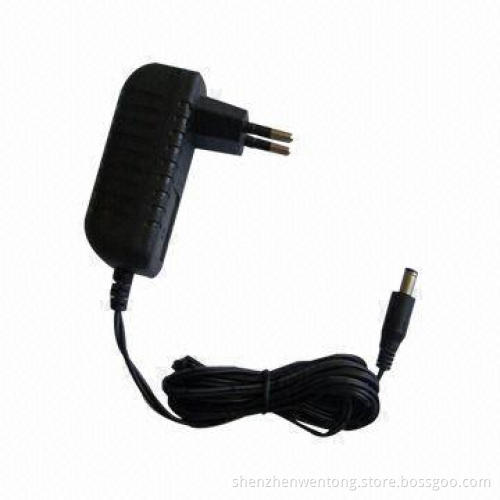

18W AC/DC Adapter with EU Plug and 100 to 240V AC Input Voltage, Sized 74 x 40 x 30mm
  • 18W AC/DC Adapter with EU Plug and 100 to 240V AC Input Voltage, Sized 74 x 40 x 30mm
18W AC/DC Adapter with EU Plug and 100 to 240V AC Input Voltage, Sized 74 x 40 x 30mm

18W AC/DC Adapter with EU Plug and 100 to 240V AC Input Voltage, Sized 74 x 40 x 30mm

Get Latest Price
Payment Type:
T/T
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T
Product Description
Product Description
  • Specifications:
    • Input voltages: 100 to 240V AC at 50/60Hz
    • Output: 6V/3A
    • Voltage tolerance: ±5%
    • Ripple and noise: less than 1% (mVp-p)
    • Turn on delay: time less than 3 seconds
    • Hold up time: more than 10 minutes
    • Over-voltage protection: 120% (minimum)
    • Over-current protection: 120% (minimum)
    • Short-circuit protection: automatic recovery
    • Loading regulation: ±5%
    • Operating temperatures: 0 to 40°C
    • Storage temperatures: -20 to 85°C
    • Operating relative humidity range: 5 to 95% RH
    • Insulation: hi-pot, 3,000V AC, 60 seconds, 10mA
    • Leakage current: 0.25mA (maximum)
    • MTBF: more than 50,000 hours
    • Comes with safety approval: UL/cUL, PSE, GS, CE, CB, FCC, SAA,CCC, ERP and C-tick marks
    • DC jack: 5.5 x 2.1 x 11mm
    • Dimensions: 74 x 40 x 30mm
  • Applications:
    • Digital cameras
    • CD-ROM, hubs and ADSL APs
    • Communication terminals
    • Tester machines
    • Any portable devices or machines
  • Input voltages: 100 to 240V AC at 50/60Hz
  • Output: 6V/3A
  • Voltage tolerance: ±5%
  • Ripple and noise: less than 1% (mVp-p)
  • Turn on delay: time less than 3 seconds
  • Hold up time: more than 10 minutes
  • Over-voltage protection: 120% (minimum)
  • Over-current protection: 120% (minimum)
  • Short-circuit protection: automatic recovery
  • Loading regulation: ±5%
  • Operating temperatures: 0 to 40°C
  • Storage temperatures: -20 to 85°C
  • Operating relative humidity range: 5 to 95% RH
  • Insulation: hi-pot, 3,000V AC, 60 seconds, 10mA
  • Leakage current: 0.25mA (maximum)
  • MTBF: more than 50,000 hours
  • Comes with safety approval: UL/cUL, PSE, GS, CE, CB, FCC, SAA,CCC, ERP and C-tick marks
  • DC jack: 5.5 x 2.1 x 11mm
  • Dimensions: 74 x 40 x 30mm
  • Digital cameras
  • CD-ROM, hubs and ADSL APs
  • Communication terminals
  • Tester machines
  • Any portable devices or machines
