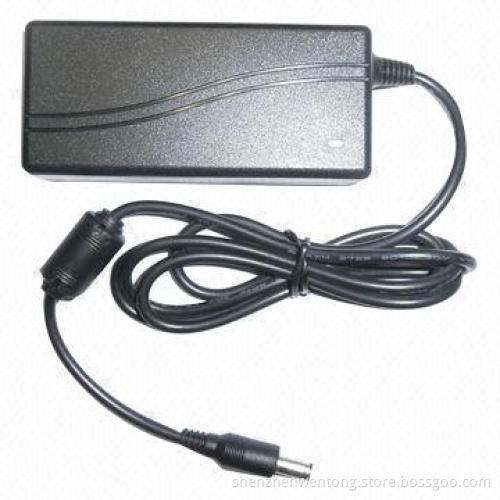

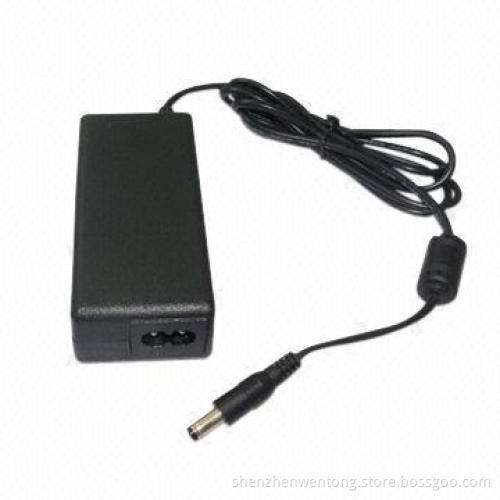

12V 2.5A Desktop Type AC/DC Adapter, Passed EMC/EMI, Meets UL/GS/SAA/PSE/CCC Certifications
  • 12V 2.5A Desktop Type AC/DC Adapter, Passed EMC/EMI, Meets UL/GS/SAA/PSE/CCC Certifications
  • 12V 2.5A Desktop Type AC/DC Adapter, Passed EMC/EMI, Meets UL/GS/SAA/PSE/CCC Certifications
12V 2.5A Desktop Type AC/DC Adapter, Passed EMC/EMI, Meets UL/GS/SAA/PSE/CCC Certifications
12V 2.5A Desktop Type AC/DC Adapter, Passed EMC/EMI, Meets UL/GS/SAA/PSE/CCC Certifications

12V 2.5A Desktop Type AC/DC Adapter, Passed EMC/EMI, Meets UL/GS/SAA/PSE/CCC Certifications

Get Latest Price
Payment Type:
T/T
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T
Product Description
Product Description
  • Specifications:
    • Input voltages: 100 to 240V AC, 50 or 60Hz
    • Output: 12V/2.5A
    • Voltage tolerance: ±5%, ripple and noise (mVp-p) lessthan 1%, turn on delay time, less than 3 seconds, hold up timemore than 10ms
    • Over-voltage protection: 120% (minimum)
    • Over-current protection: 120% (minimum)
    • Short-circuit protection: automatic recovery
    • Loading regulation: ±5%
    • Operating temperature: 0 to 40°C
    • Storage temperature: -20 to 85°C
    • Operating relative humidity range: 5 to 95% RH
    • Insulation: Hi-pot, 3,000V AC, 60 seconds, 10mA
    • Leakage current: 0.25mA (maximum)
    • MTBF: more than 50,000 hours
    • With UL/cUL, PSE, GS, CE, CB, FCC, SAA, CCC, ERP and C-Tickmarks
  • Features:
  • Configuration: desktop type
  • DC jack: 5.5 x 2.5 x 11mm
  • AC input: C6/C8
  • Dimensions: 96 x 43.5 x 28.5mm
  • Input voltages: 100 to 240V AC, 50 or 60Hz
  • Output: 12V/2.5A
  • Voltage tolerance: ±5%, ripple and noise (mVp-p) lessthan 1%, turn on delay time, less than 3 seconds, hold up timemore than 10ms
  • Over-voltage protection: 120% (minimum)
  • Over-current protection: 120% (minimum)
  • Short-circuit protection: automatic recovery
  • Loading regulation: ±5%
  • Operating temperature: 0 to 40°C
  • Storage temperature: -20 to 85°C
  • Operating relative humidity range: 5 to 95% RH
  • Insulation: Hi-pot, 3,000V AC, 60 seconds, 10mA
  • Leakage current: 0.25mA (maximum)
  • MTBF: more than 50,000 hours
  • With UL/cUL, PSE, GS, CE, CB, FCC, SAA, CCC, ERP and C-Tickmarks
  • Applications:
  • Digital camera
  • CD-ROMs, hubs and ADSL APs
  • Communication terminals
  • Tester machine
  • Any portable device or machine
