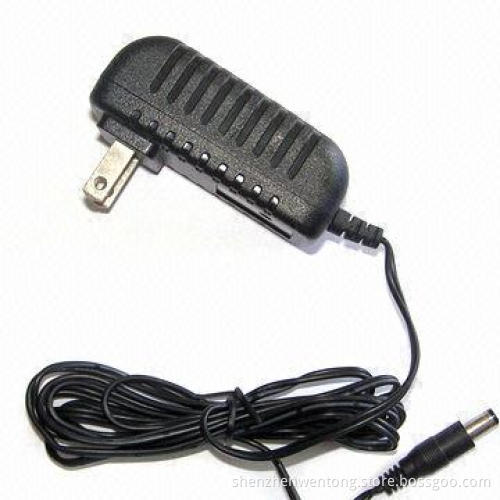

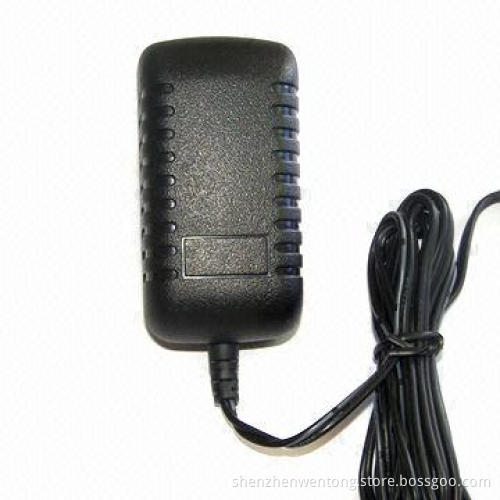

Adapter with 100 to 240V AC, 50/60Hz Input Voltage, Measures 74 x 40 x 30mm

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T

Product Description

Applications:

Digital cameras

CD-ROMs, hubs and ADSL APs

Communication terminals

Tester machines

Any portable devices or machines

Specifications:

Output: 12V/1A

Input voltages: 100 to 240V AC, 50/60Hz

Output power: 12W

Output voltages: 3 to 24V

Voltage tolerance ±5%, ripple and noise (mVp-p) lessthan 1%, turn on delay time less than 3s, hold up time more than10ms

Over-voltage protection: 120% (minimum)

Over-current protection: 120% (minimum)

Short-circuit protection: automatic recovery

Loading regulation: ±5%

Operating temperatures: up to 40°C

Storage temperatures: -20 to 85°C

Operating relative humidity range: 5 to 95% RH

Insulation: HI-POT, 3,000 V AC 60S 10mA

Leakage current: 0.25mA (maximum)

MTBF: more than 50,000 hours

With UL/cUL, PSE, GS, CE, CB, FCC, SAA, CCC, ErP and C-TICKmarks

Warranty: 1 year

Size: 74 x 40 x 30mm
