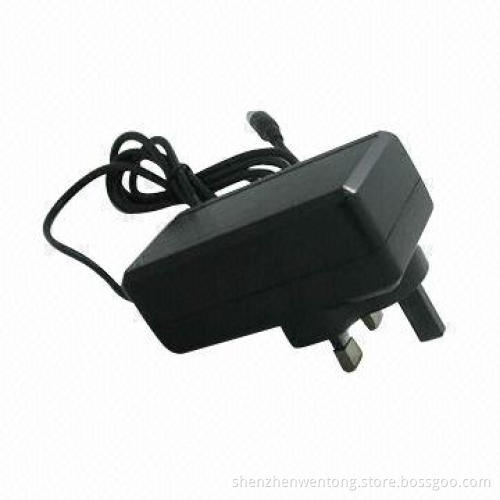

12V/3A Power Supply with UK Plug, Wallmount Type
  • 12V/3A Power Supply with UK Plug, Wallmount Type
  • 12V/3A Power Supply with UK Plug, Wallmount Type
12V/3A Power Supply with UK Plug, Wallmount Type
12V/3A Power Supply with UK Plug, Wallmount Type

12V/3A Power Supply with UK Plug, Wallmount Type

Get Latest Price
Payment Type:
T/T
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T
Product Description
Product Description
  • Features:
    • Fashionable design
    • Small size: 86 x 47.5 x 33mm
    • Low-ripple and noise
    • High-efficiency
    • Certificates: EMC EN55022B, FCC, GB9254 and VCCI
    • Safety certificates: UL/cUL, PSE, TUV, GS, CE, CCC &SAA
  • Specifications:
    • Input voltages: 100 to 240V AC, 50/60Hz
    • Output: 12V/3A
    • Output voltages: 5 to 24V
    • Output currents: 0.5 to 3A
    • Output: voltage tolerance: ±5%, ripple and noise (mVp-p)<1%, turn on delay time less than 3 seconds, hold up time morethan 10-millisecond
    • Protections: short-circuit, over-current and over-voltage
    • Altitude: <3,000m
    • Insulation: hi-pot, 3,000V AC, 60 seconds and 10mA
    • Leakage current: 0.25mA (maximum)
    • MTBF: MIL-HDBK-217F, full load, 25, more than 50,000 hours
    • Operating temperatures: up to 40°C, 10 to 90% RH
    • Storage temperatures: -20 to 85°C, 10 to 90% RH
    • DC cord lengths: 1.2, 1.5, 1.8 and 2m
    • DC plug: 5.5 x 2.1, 5.5 x 2.5 and 3.5 x 1.35mm
  • Fashionable design
  • Small size: 86 x 47.5 x 33mm
  • Low-ripple and noise
  • High-efficiency
  • Certificates: EMC EN55022B, FCC, GB9254 and VCCI
  • Safety certificates: UL/cUL, PSE, TUV, GS, CE, CCC &SAA
  • Input voltages: 100 to 240V AC, 50/60Hz
  • Output: 12V/3A
  • Output voltages: 5 to 24V
  • Output currents: 0.5 to 3A
  • Output: voltage tolerance: ±5%, ripple and noise (mVp-p)<1%, turn on delay time less than 3 seconds, hold up time morethan 10-millisecond
  • Protections: short-circuit, over-current and over-voltage
  • Altitude: <3,000m
  • Insulation: hi-pot, 3,000V AC, 60 seconds and 10mA
  • Leakage current: 0.25mA (maximum)
  • MTBF: MIL-HDBK-217F, full load, 25, more than 50,000 hours
  • Operating temperatures: up to 40°C, 10 to 90% RH
  • Storage temperatures: -20 to 85°C, 10 to 90% RH
  • DC cord lengths: 1.2, 1.5, 1.8 and 2m
  • DC plug: 5.5 x 2.1, 5.5 x 2.5 and 3.5 x 1.35mm
