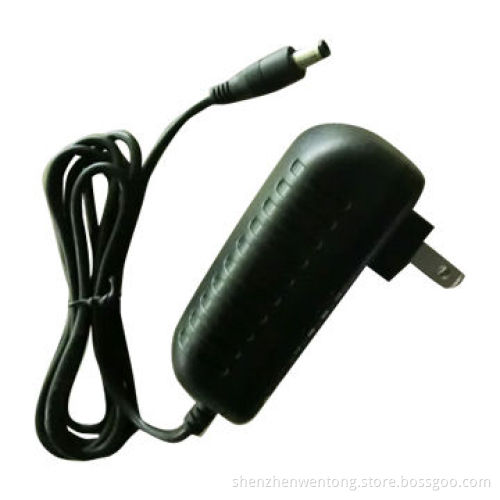

13V/1.3A Wall Mount Type Power Adapter with US Plug, Sized 82 x 43 x 30mm

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T

Product Description

Specifications:

Fashionable appearance, small size

Lower ripple and noise, high-efficiency

Dimensions (L x W x H): 82 x 43 x 30mm

Input voltage: 100 to 240V AC, 50/60Hz

Output voltage: 13V, 1.3A

DC cord: 1.2/1.5/1.8m

DC jack: 5.5 x 2.1 x 11mm/5.5 x 2.5 x 11mm

Power: 17W

Output: voltage tolerance ±5%, ripple and noise (mVp-p)

Protection: short-circuit, over-current and over-voltage protection

Operating temperature: 0 to 40 degrees Celsius

Humidity: 10 to 90% RH

Storage temperature: -20 to 85 degrees Celsius, altitude:

EMC: EN55022B, FCC, GB9254 and VCCI

With UL/CUL, PSE, TUV/GS, CCC, SAA and BSI marks

Insulation: high-pot, 3,000V AC 60S/10mA

Leakage current: 0.25mA (maximum)

MTBF: MIL-HDBK-217F, full loading, 25, more than 50,000 hours

Usage: security cameras, LCD monitors, LCD TVs and LED lights
