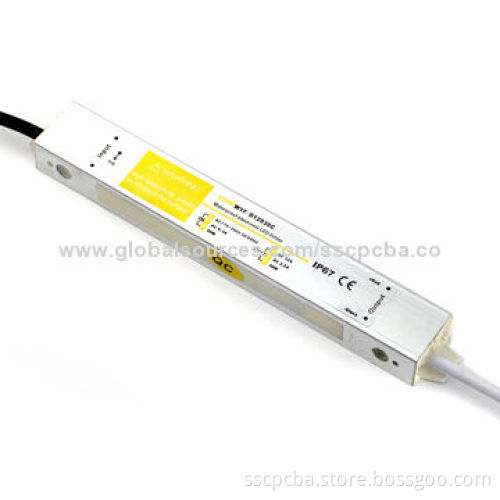

Water-resistant LED Driver, with High Power Factor

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T

Product Description

Input power supplies: 100 to 240V AC, 1.5A, 50/60Hz

Power factor: >0.85

Output voltages: 13 to 36V

Output current: 700mA

Built-in OCP, OVP, SCP, thermal protection and over power protection

Lighting surge: 5kV above

Efficiency: >85% typical

Operating temperatures: -40 to 65°C

With FCC, CE and UL marks

Universal AC input range: 90 to 264V AC

Fully isolated plastic case

Built-in constant current limiting design

Operating temperatures: -10 to 40°C full load

Protections: OVP/OLP/SCP

With thermal protection and over power protection

Lightning surge: >4kV

Class II power design without earth pin

Warranty: 1 year

Outputs:

Inputs:

Voltage range: all 90 to 264V AC
Frequency range: 47 to 63Hz
AC currents: 0.2 at 115/0.1A at 230V AC
Power factor: greater than 0.95 at 110V AC
Inrush current: no components will be stressed over its max specification according to I2T
Leakage current: <0.25mA/240V AC

Protections:

Overload: 100 to 135% rated output power
Recovers automatically after fault condition has been removed
Short circuit type: hiccup mode, recovers automatically after fault condition is removed
Over voltages: 105 to 120% rated output voltage

Environments:

Operating temperatures: -10 to 40°C full load
Operation humidity range: 20 to 95% RH non-condensing
Storage temperatures: -20 to +80°C
Storage humidity range: 10 to 95% RH
Vibration range: 10 to 500Hz, 2G, 10min/1 cycle, period for 60mineach along X, Y and Z axes

All output constant current: 700mA DC

Maximum rated power: 3 to 20W

Efficiency (typical) 230V AC: 90%

Power factor: 90%

Rise time: less than 250ms at full load

Voltage range: all 90 to 264V AC

Frequency range: 47 to 63Hz

AC currents: 0.2 at 115/0.1A at 230V AC

Power factor: greater than 0.95 at 110V AC

Inrush current: no components will be stressed over its max specification according to I2T

Leakage current: <0.25mA/240V AC

Overload: 100 to 135% rated output power
