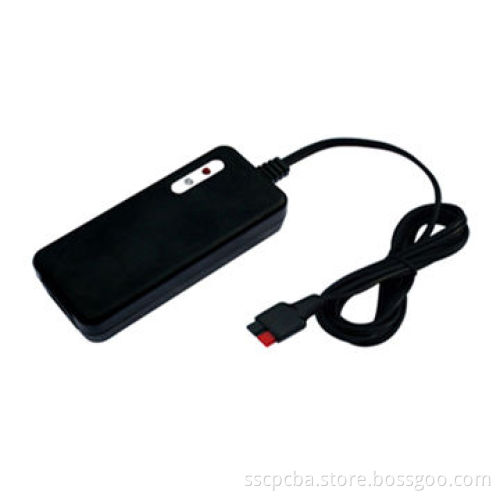

Li-ion/Lead-acid/NiMH Battery MCU Chargers

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T

Product Description

High efficiency and reliability

Protections: SCP, OVP and OLP

Certifications: UL, cUL, FCC, GS, CE and CCC

100% full load burn-in test

MBTF: ≥30,000 hours (25°C, full load)

Applications: CD/DVD, MP3/MP4 players, digital cameras and communication terminals

Inputs:

Outputs:

Line regulation: ±2%
Voltage: 12V
Load regulation: ±5%
Set up time: <3.0s (115V AC input, full load), 1.5s (230V AC input, full load)
Hold up time: >10ms (115V AC input, full load), <20ms (230V AC input, full load)

Protection:

Environment:

Safety and EMC:

Safety standards: UL 60950-1, GB 4943-2001 and EN 60950-1:2006
Withstand voltage: input-output 3.0kV AC, 1 minute (≤5mA)
Isolation resistance: ≥100MΩ at 500V DC
EMI conduction and radiation: compliance to EN 55022 (CISPR22) class B, FCC part 15 and GB 9254-2008
EMS immunity: compliance to EN 61000-4-0, 3, 4, 5, 6, 8 and 11

Voltage range: 100 to 240V AC

Frequency range: 50 to 60Hz

Leakage current: primary-secondary <0.25mA

Line regulation: ±2%

Voltage: 12V

Load regulation: ±5%

Set up time: <3.0s (115V AC input, full load), 1.5s (230V AC input, full load)

Hold up time: >10ms (115V AC input, full load), <20ms (230V AC input, full load)

Short-circuit: no damage for short-circuit and auto recovery

Operating ambient temperature and humidity range: -20 to 40°C, 5 to 95% RH

Storage temperatures and humidity range: -20 to 85°C, 5 to 95% RH

Safety standards: UL 60950-1, GB 4943-2001 and EN 60950-1:2006
