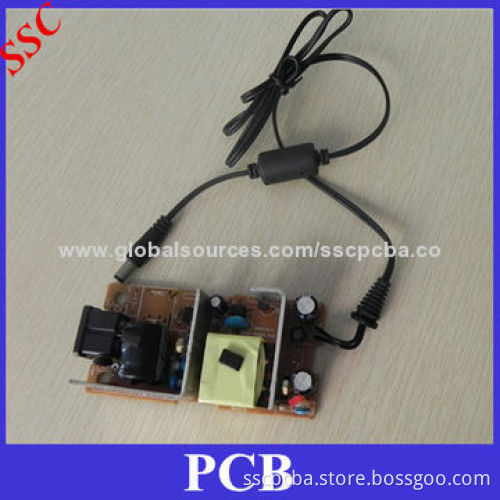

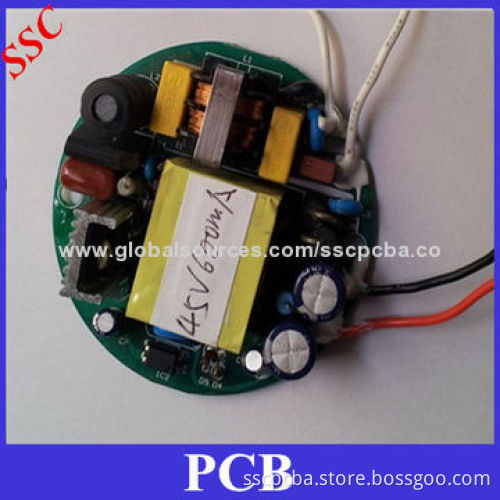

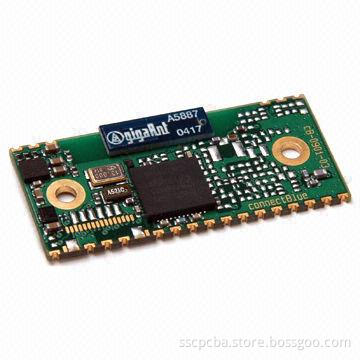

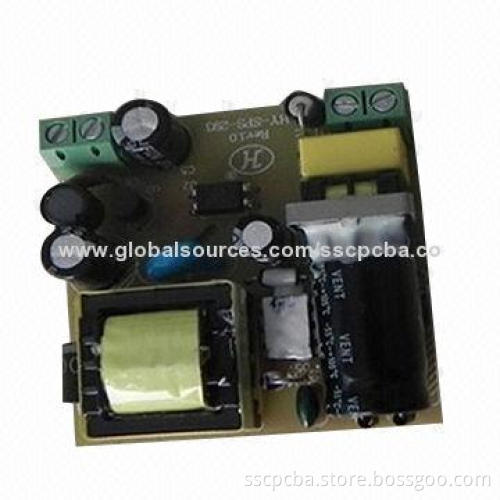

Double-layer PCB with Lead-free HASL, Tin/Gold/Silver Plating Surface Finish, Made of FR-4

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T

Product Description

Material: FR-4

With double-layer

Surface treatments: lead-free HASL, tin/gold/silver plating

Layer count: 2-28 board

Materials: FR-4, CEM-3, high-TG, aluminum base, Ro4002, Ro4003F4, BT

Maximum sizes: 400mmx500mm, copper foil (outer/inner layer) 1/2oz-2oz/1/2oz-2oz/3oz

Drill hole bit (mechanical hole): 0.2mm-6.00mm

Laser hole size: 0.1mm

Line margin: 0.2mm (CNC): 0.30mm (punch) 0.50mm (V-cut)

Routing tolerance: ±3%mil

Punching tolerance: ±4%mil

V-cut angle: 30, 45, 60°

V-cut deepness tolerance: ±0.15 (V-cut): ±0.1mm (CNC V-cut)
