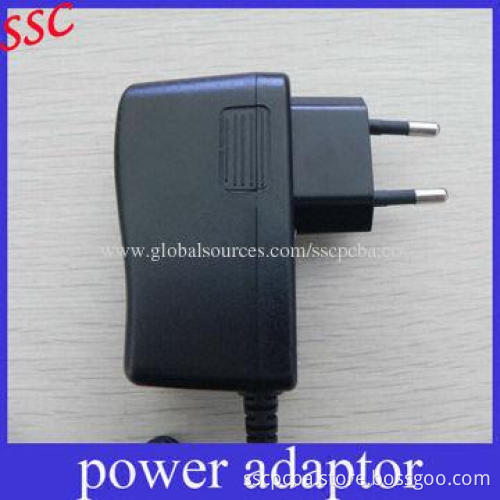

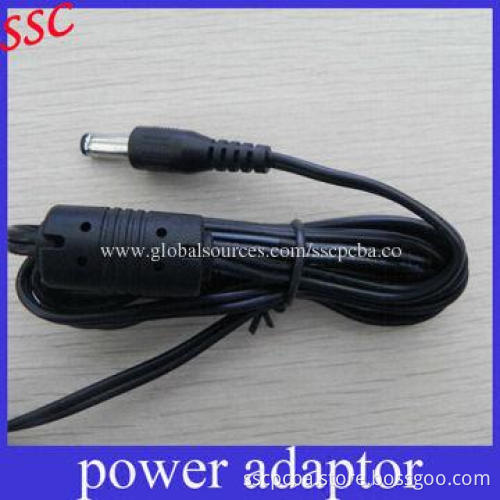

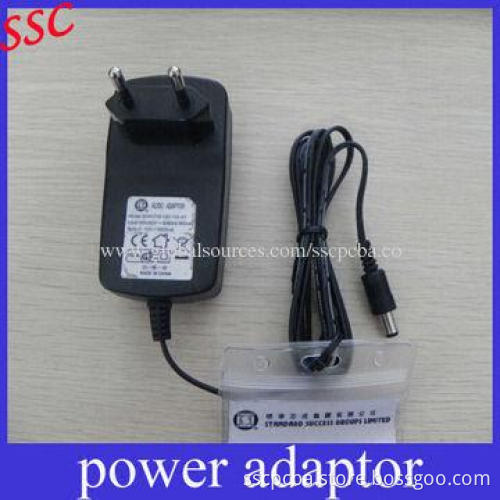

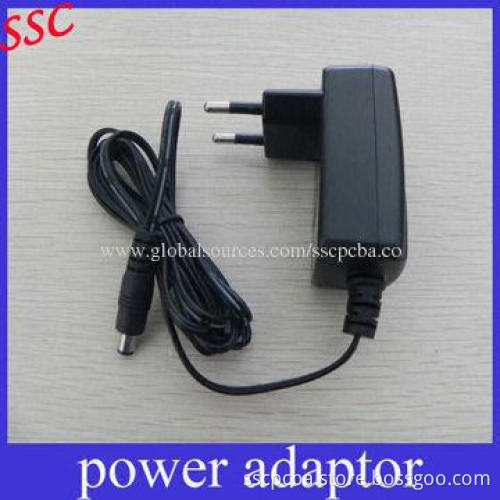

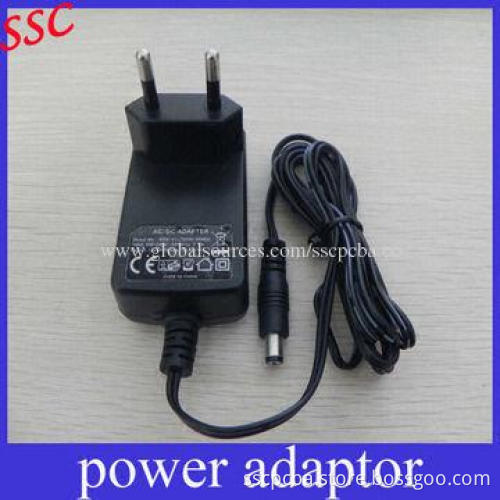

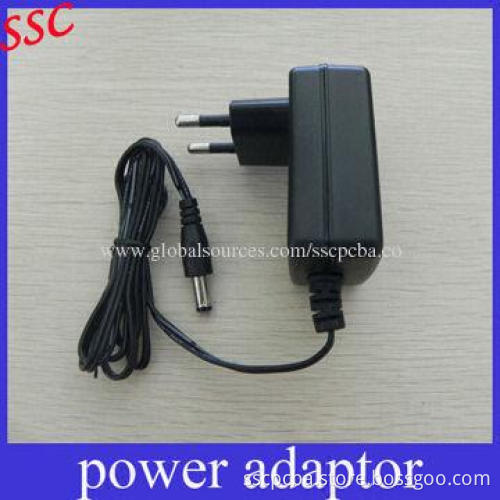

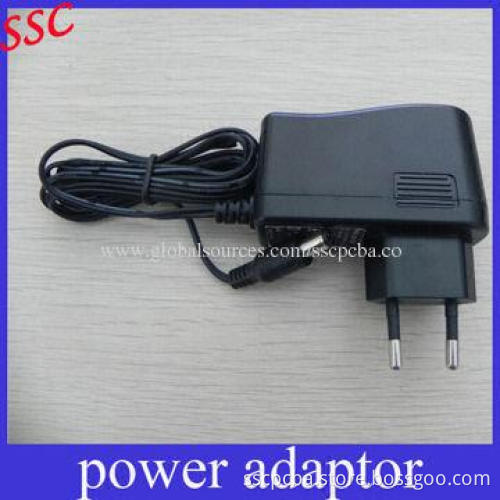

6W AC/DC Switching Power Supply with UL, CE, FCC, GS Certificates
  • 6W AC/DC Switching Power Supply with UL, CE, FCC, GS Certificates
  • 6W AC/DC Switching Power Supply with UL, CE, FCC, GS Certificates
  • 6W AC/DC Switching Power Supply with UL, CE, FCC, GS Certificates
  • 6W AC/DC Switching Power Supply with UL, CE, FCC, GS Certificates
  • 6W AC/DC Switching Power Supply with UL, CE, FCC, GS Certificates
  • 6W AC/DC Switching Power Supply with UL, CE, FCC, GS Certificates
  • 6W AC/DC Switching Power Supply with UL, CE, FCC, GS Certificates
  • 6W AC/DC Switching Power Supply with UL, CE, FCC, GS Certificates
6W AC/DC Switching Power Supply with UL, CE, FCC, GS Certificates
6W AC/DC Switching Power Supply with UL, CE, FCC, GS Certificates
6W AC/DC Switching Power Supply with UL, CE, FCC, GS Certificates
6W AC/DC Switching Power Supply with UL, CE, FCC, GS Certificates
6W AC/DC Switching Power Supply with UL, CE, FCC, GS Certificates
6W AC/DC Switching Power Supply with UL, CE, FCC, GS Certificates
6W AC/DC Switching Power Supply with UL, CE, FCC, GS Certificates
6W AC/DC Switching Power Supply with UL, CE, FCC, GS Certificates

6W AC/DC Switching Power Supply with UL, CE, FCC, GS Certificates

Get Latest Price
Payment Type:
T/T
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T
Product Description
Product Description
  • Features:
    • Universal AC input
    • High efficiency and high reliability
    • Protections: SCP, OVP, OLP
    • 100% full load burn-in test
    • MBTF: ≧30,000Hrs (25℃，full load)
  • Applications:
    • Power tools, network equipment
    • Telecommunications devices
  • Input:
    • Voltage range: 100-240V AV
    • Frequency range: 50-60Hz
    • AC current (maximum): 1.5A
    • In-rush current (typical): 40A at 115V AC and 60A at 230V AC cold start
    • Leakage current:
      • Primary-secondary: <0.25Ma
  • Output:
    • Line regulation: ±2%
    • Load regulation: ±5%
    • Set up time: <3.0S (115V AC input, full load), 1.5s (230V
    •  AC input, full load)
    • Hold up time: >10Ms (115V AC input, full load), <20ms (230V AC input, full load)
  • Short circuit: no damage for short-circuit, auto recovery
  • Environment:
    • Operating ambient temperature and humidity: -0-40℃, 5-95% RH
    • Storage temperature and humidity: -20-85℃, 5-95% RH
  • Dimensions: 65*36*28mm
  • Safety and EMC:
    • Safety standards: UL60950-1, GB4943-2001, EN60950-1:2006
    • Withstand voltage:
      • Input-output: 3.0kV AC, 1min (≦5ma)
    • Isolation resistance: ≧100MΩ at DC 500V
    • EMI conduction and radiation: compliant with EN55022 (CISPR22) Class B, FCC Part15, GB9254-2008
    • EMS immunity: compliant to EN61000-4-0, 3, 4, 5, 6, 8, 11
  • Lightweight:
    • Smart and convenient use
    • Universal input voltage:
      • Cooling: natural cooling
    • MTBF: 50,000hrs​​​
    • Certificates: UL, CE, FCC, GS, TUV, SAA, CCC and PSE
  • Universal AC input
  • High efficiency and high reliability
  • Protections: SCP, OVP, OLP
  • 100% full load burn-in test
  • MBTF: ≧30,000Hrs (25℃，full load)
  • Power tools, network equipment
  • Telecommunications devices
  • Voltage range: 100-240V AV
  • Frequency range: 50-60Hz
  • AC current (maximum): 1.5A
  • In-rush current (typical): 40A at 115V AC and 60A at 230V AC cold start
  • Leakage current:
    • Primary-secondary: <0.25Ma
  • Primary-secondary: <0.25Ma
  • Line regulation: ±2%
  • Load regulation: ±5%
  • Set up time: <3.0S (115V AC input, full load), 1.5s (230V
  •  AC input, full load)
  • Hold up time: >10Ms (115V AC input, full load), <20ms (230V AC input, full load)
  • Operating ambient temperature and humidity: -0-40℃, 5-95% RH
  • Storage temperature and humidity: -20-85℃, 5-95% RH
  • Safety standards: UL60950-1, GB4943-2001, EN60950-1:2006
  • Withstand voltage:
    • Input-output: 3.0kV AC, 1min (≦5ma)
  • Isolation resistance: ≧100MΩ at DC 500V
  • EMI conduction and radiation: compliant with EN55022 (CISPR22) Class B, FCC Part15, GB9254-2008
  • EMS immunity: compliant to EN61000-4-0, 3, 4, 5, 6, 8, 11
  • Input-output: 3.0kV AC, 1min (≦5ma)
  • Smart and convenient use
  • Universal input voltage:
    • Cooling: natural cooling
  • MTBF: 50,000hrs​​​
  • Certificates: UL, CE, FCC, GS, TUV, SAA, CCC and PSE
  • Cooling: natural cooling
