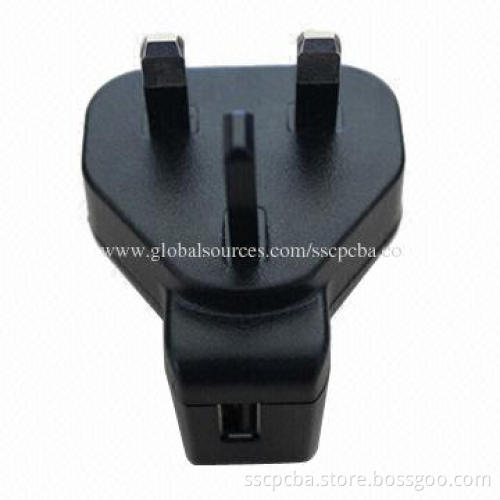

Different Model AC/DC Removable Outer Plug Adapter, Pass UL/CUL/FCC/GS/CE/CCC/PSG/SAA Certificates
  • Different Model AC/DC Removable Outer Plug Adapter, Pass UL/CUL/FCC/GS/CE/CCC/PSG/SAA Certificates
  • Different Model AC/DC Removable Outer Plug Adapter, Pass UL/CUL/FCC/GS/CE/CCC/PSG/SAA Certificates
  • Different Model AC/DC Removable Outer Plug Adapter, Pass UL/CUL/FCC/GS/CE/CCC/PSG/SAA Certificates
  • Different Model AC/DC Removable Outer Plug Adapter, Pass UL/CUL/FCC/GS/CE/CCC/PSG/SAA Certificates
  • Different Model AC/DC Removable Outer Plug Adapter, Pass UL/CUL/FCC/GS/CE/CCC/PSG/SAA Certificates
  • Different Model AC/DC Removable Outer Plug Adapter, Pass UL/CUL/FCC/GS/CE/CCC/PSG/SAA Certificates
  • Different Model AC/DC Removable Outer Plug Adapter, Pass UL/CUL/FCC/GS/CE/CCC/PSG/SAA Certificates
  • Different Model AC/DC Removable Outer Plug Adapter, Pass UL/CUL/FCC/GS/CE/CCC/PSG/SAA Certificates
Different Model AC/DC Removable Outer Plug Adapter, Pass UL/CUL/FCC/GS/CE/CCC/PSG/SAA Certificates
Different Model AC/DC Removable Outer Plug Adapter, Pass UL/CUL/FCC/GS/CE/CCC/PSG/SAA Certificates
Different Model AC/DC Removable Outer Plug Adapter, Pass UL/CUL/FCC/GS/CE/CCC/PSG/SAA Certificates
Different Model AC/DC Removable Outer Plug Adapter, Pass UL/CUL/FCC/GS/CE/CCC/PSG/SAA Certificates
Different Model AC/DC Removable Outer Plug Adapter, Pass UL/CUL/FCC/GS/CE/CCC/PSG/SAA Certificates
Different Model AC/DC Removable Outer Plug Adapter, Pass UL/CUL/FCC/GS/CE/CCC/PSG/SAA Certificates
Different Model AC/DC Removable Outer Plug Adapter, Pass UL/CUL/FCC/GS/CE/CCC/PSG/SAA Certificates
Different Model AC/DC Removable Outer Plug Adapter, Pass UL/CUL/FCC/GS/CE/CCC/PSG/SAA Certificates

Different Model AC/DC Removable Outer Plug Adapter, Pass UL/CUL/FCC/GS/CE/CCC/PSG/SAA Certificates

Get Latest Price
Payment Type:
T/T
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T
Product Description
Product Description
  • Features:
    • Universal AC input
    • High efficiency and high rellability
    • Protections: SCP, OVP, OLP
    • Pass UL, CUL, FCC, GS, CE, CCC certification
    • 100% full load burn-in test
    • MBTF≥30,000 hours (25℃, full load)
  • Applications:
    • CD/DVD, MP3/MP4, dightal camera
    • Communication terminals and more
  • Input:
    • Voltage range: 100-240V AC
    • Frequency range: 50-60Hz
    • Leakage current: primary-secondary: <0.25MA
  • Output:
    • Line regulation: ±2%
    • Load regulation: ±5%
    • Set up time: <3.0S (115V AC input, full load), 1.5s (230V AC input, full load)
    • Holp up time: >10Ms (115V AC input, full load), <20ms (230V AC input, full load)
  • Protection:
    • Short circuit: no damage for short-circuit, auto recovery
  • Environment:
    • Operating ambient temperature and humidity: -0-40℃, 5-95% RH
    • Storage temperature and humidity: -20-85℃, 5-95%RH
    • Dimensions: L*W*H: see below table
  • Safety and EMC:
    • Safety standards: UL60950-1, GB4943-2001, EN60950-1:2006
    • Withstand voltage: Input/Output: 3.0KV AC, 1 minute (≦5ma)
    • Isolation resistance: ≥100M ohm, at DC 500V
    • EMI conduction and radiation: compliance to EN55022 (CISPR22) Class B, FCC Part 15, GB9254-2008
    • EMS immunity: compliance to EN61000-4-0, 3, 4, 5, 6, 8, 11
  • Universal AC input
  • High efficiency and high rellability
  • Protections: SCP, OVP, OLP
  • Pass UL, CUL, FCC, GS, CE, CCC certification
  • 100% full load burn-in test
  • MBTF≥30,000 hours (25℃, full load)
  • CD/DVD, MP3/MP4, dightal camera
  • Communication terminals and more
  • Voltage range: 100-240V AC
  • Frequency range: 50-60Hz
  • Leakage current: primary-secondary: <0.25MA
  • Line regulation: ±2%
  • Load regulation: ±5%
  • Set up time: <3.0S (115V AC input, full load), 1.5s (230V AC input, full load)
  • Holp up time: >10Ms (115V AC input, full load), <20ms (230V AC input, full load)
  • Short circuit: no damage for short-circuit, auto recovery
  • Operating ambient temperature and humidity: -0-40℃, 5-95% RH
  • Storage temperature and humidity: -20-85℃, 5-95%RH
  • Dimensions: L*W*H: see below table
  • Safety standards: UL60950-1, GB4943-2001, EN60950-1:2006
  • Withstand voltage: Input/Output: 3.0KV AC, 1 minute (≦5ma)
  • Isolation resistance: ≥100M ohm, at DC 500V
  • EMI conduction and radiation: compliance to EN55022 (CISPR22) Class B, FCC Part 15, GB9254-2008
  • EMS immunity: compliance to EN61000-4-0, 3, 4, 5, 6, 8, 11
