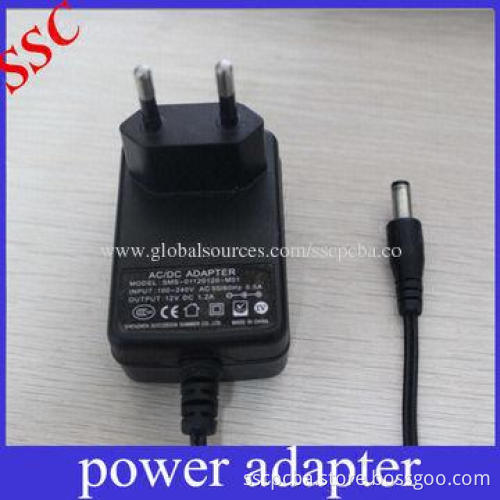

Power Adapters with High Efficiency, SCP, OVP and OLP Protections
  • Power Adapters with High Efficiency, SCP, OVP and OLP Protections
  • Power Adapters with High Efficiency, SCP, OVP and OLP Protections
  • Power Adapters with High Efficiency, SCP, OVP and OLP Protections
  • Power Adapters with High Efficiency, SCP, OVP and OLP Protections
  • Power Adapters with High Efficiency, SCP, OVP and OLP Protections
  • Power Adapters with High Efficiency, SCP, OVP and OLP Protections
  • Power Adapters with High Efficiency, SCP, OVP and OLP Protections
  • Power Adapters with High Efficiency, SCP, OVP and OLP Protections
Power Adapters with High Efficiency, SCP, OVP and OLP Protections
Power Adapters with High Efficiency, SCP, OVP and OLP Protections
Power Adapters with High Efficiency, SCP, OVP and OLP Protections
Power Adapters with High Efficiency, SCP, OVP and OLP Protections
Power Adapters with High Efficiency, SCP, OVP and OLP Protections
Power Adapters with High Efficiency, SCP, OVP and OLP Protections
Power Adapters with High Efficiency, SCP, OVP and OLP Protections
Power Adapters with High Efficiency, SCP, OVP and OLP Protections

Power Adapters with High Efficiency, SCP, OVP and OLP Protections

Get Latest Price
Payment Type:
T/T
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T
Product Description
Product Description
  • Features:
    • Universal AC input
    • High efficiency and high reliability
    • Protections: SCP, OVP, OLP
    • 100% full-load burn-in test
    • MBTF: ≥30,000hrs (25°C, full load)
  • Applications:
    • Power tools, network equipment
    • Telecommunications devices
  • Input:
    • Voltage range: 100-240V AC
    • Frequency range: 50-60Hz
    • AC current (maximum): 1.5A
    • In-rush current (typical): 40A at 115V AC, 60A at 230V AC, cold start
    • Leakage current (primary/secondary): <0.25mA
  • Output:
    • Line regulation: ±2%
    • Load regulation: ±5%
    • Set up time: <3.0S (115V AC input, full load), 1.5S (230V AC input, full load)
    • Hold up time: >10Ms (115V AC input, full load), <20ms (230V AC input, full load)
  • Protections:
    • Short-circuit: no damage for short circuit, auto recovery
  • Environment:
    • Operating ambient temperature and humidity: -0-40°C/5-95% RH
    • Storage temperature and humidity: -20-85°C, 5-95% RH
    • Safety and EMC:
      • Safety standards: UL60950-1, GB4943-2001, EN60950-1:2006
    • Withstand voltage:
      • Input-output: 3.0KV AC, 1min (≦5mA)
      • Isolation resistance: ≧100MΩ at DC 500V
    • EMI conduction and radiation: compliant with EN55022 (CISPR22) ClassB, FCC Part15, GB9254-2008
    • EMS immunity: compliant with EN61000-4-0, 3, 4, 5, 6, 8, 11
  • Lightweight:
    • Smart and convenient
    • Universal input voltage
    • Cooling: natural cooling
    • MTBF: 50,000hrs​​​
    • Certificates: UL, CE, FCC, GS, TUV, SAA, CCC and PSE
  • Universal AC input
  • High efficiency and high reliability
  • Protections: SCP, OVP, OLP
  • 100% full-load burn-in test
  • MBTF: ≥30,000hrs (25°C, full load)
  • Power tools, network equipment
  • Telecommunications devices
  • Voltage range: 100-240V AC
  • Frequency range: 50-60Hz
  • AC current (maximum): 1.5A
  • In-rush current (typical): 40A at 115V AC, 60A at 230V AC, cold start
  • Leakage current (primary/secondary): <0.25mA
  • Line regulation: ±2%
  • Load regulation: ±5%
  • Set up time: <3.0S (115V AC input, full load), 1.5S (230V AC input, full load)
  • Hold up time: >10Ms (115V AC input, full load), <20ms (230V AC input, full load)
  • Short-circuit: no damage for short circuit, auto recovery
  • Operating ambient temperature and humidity: -0-40°C/5-95% RH
  • Storage temperature and humidity: -20-85°C, 5-95% RH
  • Safety and EMC:
    • Safety standards: UL60950-1, GB4943-2001, EN60950-1:2006
  • Withstand voltage:
    • Input-output: 3.0KV AC, 1min (≦5mA)
    • Isolation resistance: ≧100MΩ at DC 500V
  • EMI conduction and radiation: compliant with EN55022 (CISPR22) ClassB, FCC Part15, GB9254-2008
  • EMS immunity: compliant with EN61000-4-0, 3, 4, 5, 6, 8, 11
  • Safety standards: UL60950-1, GB4943-2001, EN60950-1:2006
  • Input-output: 3.0KV AC, 1min (≦5mA)
  • Isolation resistance: ≧100MΩ at DC 500V
  • Smart and convenient
  • Universal input voltage
  • Cooling: natural cooling
  • MTBF: 50,000hrs​​​
  • Certificates: UL, CE, FCC, GS, TUV, SAA, CCC and PSE
