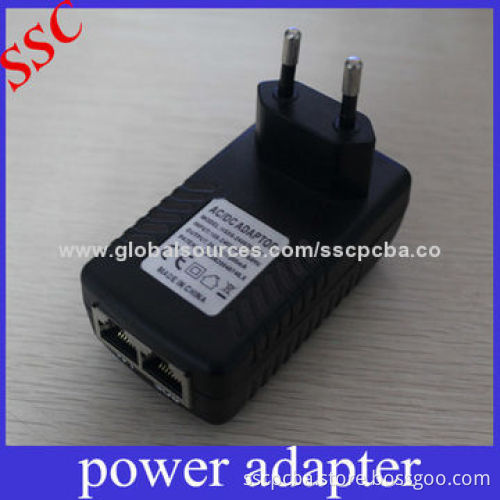

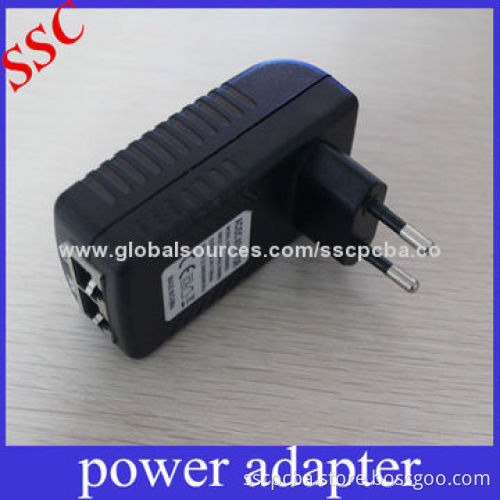

Universal Input POE Power Adapter for Telecommunications Devices
  • Universal Input POE Power Adapter for Telecommunications Devices
  • Universal Input POE Power Adapter for Telecommunications Devices
  • Universal Input POE Power Adapter for Telecommunications Devices
Universal Input POE Power Adapter for Telecommunications Devices
Universal Input POE Power Adapter for Telecommunications Devices
Universal Input POE Power Adapter for Telecommunications Devices

Universal Input POE Power Adapter for Telecommunications Devices

Get Latest Price
Payment Type:
T/T
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T
Product Description
Product Description
  • Features:
    • Universal AC input
    • High efficiency and high reliability
    • Protections: SCP, OVP, OLP
    • 100% full load burn-in test
    • MBTF: ≥30.000 hours (25°C，full load)
  • Applications:
    • Power tools, network equipment
    • Telecommunications devices
    • POE
  • Input:
    • Voltage range: 100-240V AC
    • Frequency range: 50Hz-60Hz
    • AC current (maximum): 1.5A
    • In-rush current (typical): 40A at 115V AC, 60A at 230V AC, cold start
    • Leakage current (primary/secondary): <0.25Ma
  • Output:
    • Line regulation: ±2%
    • Load regulation: ±5%
    • Set up time: <3.0S (115V AC input, full load), 1.5S (230V AC input, full load)
    • Hold up time: >10Ms (115V AC input, full load), <20ms (230V AC input, full load)
  • Dimensions:  74*41*30mm
  • Protections:
    • Short-circuit: no damage for short-circuit, auto recovery
  • Environment:
    • Operating ambient temperature and humidity: -0-40°C/5-95% RH
    • Storage temperature and humidity: -20-85°C and 5-95% RH
  • Safety and EMC:
    • Safety standards: UL60950-1, GB4943-2001, EN60950-1:2006
  • Withstand voltage:
    • Input-output: 3.0kV AC, 1min (≦5ma)
    • Isolation resistance: ≧100MΩ at 500V DC
    • EMI conduction and radiation: compliant with EN55022 (CISPR22) ClassB, FCC Part15, GB9254-2008
    • EMS immunity: compliant with EN61000-4-0, 3, 4, 5, 6, 8, 11
  • Lightweight:
    • Smart and convenience
  • Universal input voltage:
    • Cooling: natural cooling
    • MTBF: 50,000 hours​​​
    • Certifications: UL, CE, FCC, GS, TUV, SAA, CCC and PSE
  • Primary competitive advantages:
    • Brandname parts
    • Green product
    • Packing
    • Price
    • Quality approvals
    • Small orders accepted
  • Universal AC input
  • High efficiency and high reliability
  • Protections: SCP, OVP, OLP
  • 100% full load burn-in test
  • MBTF: ≥30.000 hours (25°C，full load)
  • Power tools, network equipment
  • Telecommunications devices
  • POE
  • Voltage range: 100-240V AC
  • Frequency range: 50Hz-60Hz
  • AC current (maximum): 1.5A
  • In-rush current (typical): 40A at 115V AC, 60A at 230V AC, cold start
  • Leakage current (primary/secondary): <0.25Ma
  • Line regulation: ±2%
  • Load regulation: ±5%
  • Set up time: <3.0S (115V AC input, full load), 1.5S (230V AC input, full load)
  • Hold up time: >10Ms (115V AC input, full load), <20ms (230V AC input, full load)
  • Short-circuit: no damage for short-circuit, auto recovery
  • Operating ambient temperature and humidity: -0-40°C/5-95% RH
  • Storage temperature and humidity: -20-85°C and 5-95% RH
  • Safety standards: UL60950-1, GB4943-2001, EN60950-1:2006
  • Input-output: 3.0kV AC, 1min (≦5ma)
  • Isolation resistance: ≧100MΩ at 500V DC
  • EMI conduction and radiation: compliant with EN55022 (CISPR22) ClassB, FCC Part15, GB9254-2008
  • EMS immunity: compliant with EN61000-4-0, 3, 4, 5, 6, 8, 11
  • Smart and convenience
  • Cooling: natural cooling
  • MTBF: 50,000 hours​​​
  • Certifications: UL, CE, FCC, GS, TUV, SAA, CCC and PSE
  • Brandname parts
  • Green product
  • Packing
  • Price
  • Quality approvals
  • Small orders accepted
