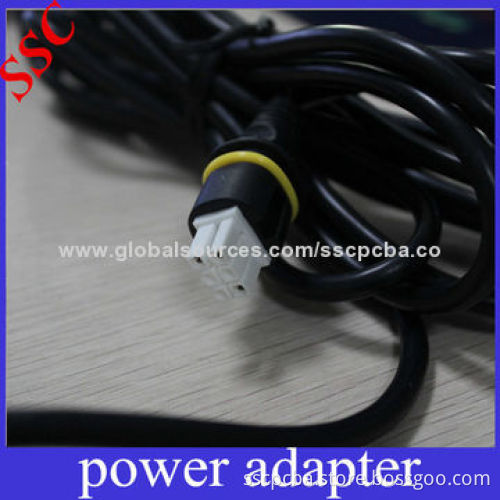

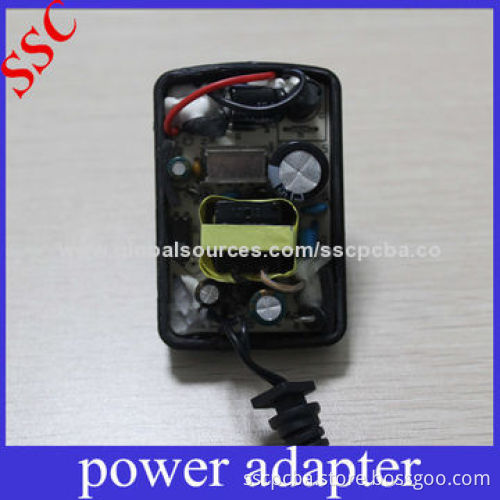

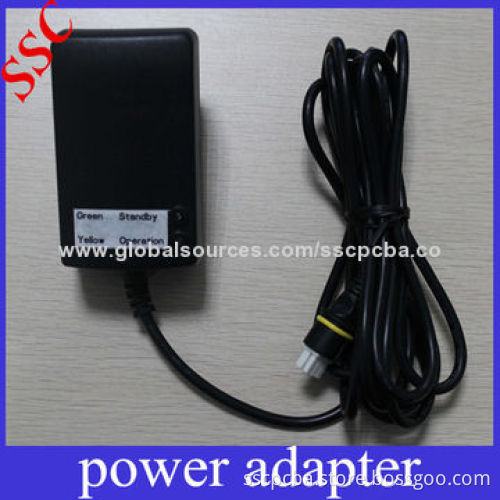

Wall-mount AC/DC Adapter with Universal AC Input
  • Wall-mount AC/DC Adapter with Universal AC Input
  • Wall-mount AC/DC Adapter with Universal AC Input
  • Wall-mount AC/DC Adapter with Universal AC Input
  • Wall-mount AC/DC Adapter with Universal AC Input
Wall-mount AC/DC Adapter with Universal AC Input
Wall-mount AC/DC Adapter with Universal AC Input
Wall-mount AC/DC Adapter with Universal AC Input
Wall-mount AC/DC Adapter with Universal AC Input

Wall-mount AC/DC Adapter with Universal AC Input

Get Latest Price
Payment Type:
T/T
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T
Product Description
Product Description
  • Features:
    • Universal AC input
    • High efficiency and reliability
    • Protection: SCP, OVP and OLP
    • Certifications: UL, cUL, FCC, GS, CE and CCC
    • 100% full load burn-in test
    • MBTF: ≧30,000 hours (25°C, full load)
  •  Applications:
    • CD/DVD, MP3/MP4 player and digital camera
    • Communication terminals
  • Input:
    • Voltage range: 100-240V AC
    • Frequency range: 50-60Hz
    • Leakage current:
      • Primary-secondary: <0.25mA
  • Output:
    • Line regulation: ±2%
    • Load regulation: ±5%
    • Setup time: <3.0s (115V AC input, full load), 1.5s (230V AC input, full load)
    • Hold-up time: >10ms (115V AC input, full load), <20ms (230V AC input, full load)
  • Protection:
    • Short-circuit: no damage for short-circuit and auto recovery
  • Environment:
    • Operating ambient temperature and humidity: -0 to 40°C, 5-95% RH
    • Storage temperature and humidity: -20 to 85°C, 5-95% RH
  • Safety and EMC:
    • Safety standards: UL 60950-1, GB 4943-2001 and EN 60950-1:2006
    • Withstand voltage:
      • Input-output: 3.0kV AC, 1min (≦5mA)
    • Isolation resistance: ≧100MΩ at 500V DC
    • EMI conduction and radiation: compliance to EN 55022 (CISPR22) Class B, FCC Part 15, GB 9254-2008
    • EMS immunity: compliance to EN 61000-4-0, 3, 4, 5, 6, 8 and 11
  • Universal AC input
  • High efficiency and reliability
  • Protection: SCP, OVP and OLP
  • Certifications: UL, cUL, FCC, GS, CE and CCC
  • 100% full load burn-in test
  • MBTF: ≧30,000 hours (25°C, full load)
  • CD/DVD, MP3/MP4 player and digital camera
  • Communication terminals
  • Voltage range: 100-240V AC
  • Frequency range: 50-60Hz
  • Leakage current:
    • Primary-secondary: <0.25mA
  • Primary-secondary: <0.25mA
  • Line regulation: ±2%
  • Load regulation: ±5%
  • Setup time: <3.0s (115V AC input, full load), 1.5s (230V AC input, full load)
  • Hold-up time: >10ms (115V AC input, full load), <20ms (230V AC input, full load)
  • Short-circuit: no damage for short-circuit and auto recovery
  • Operating ambient temperature and humidity: -0 to 40°C, 5-95% RH
  • Storage temperature and humidity: -20 to 85°C, 5-95% RH
  • Safety standards: UL 60950-1, GB 4943-2001 and EN 60950-1:2006
  • Withstand voltage:
    • Input-output: 3.0kV AC, 1min (≦5mA)
  • Isolation resistance: ≧100MΩ at 500V DC
  • EMI conduction and radiation: compliance to EN 55022 (CISPR22) Class B, FCC Part 15, GB 9254-2008
  • EMS immunity: compliance to EN 61000-4-0, 3, 4, 5, 6, 8 and 11
  • Input-output: 3.0kV AC, 1min (≦5mA)
