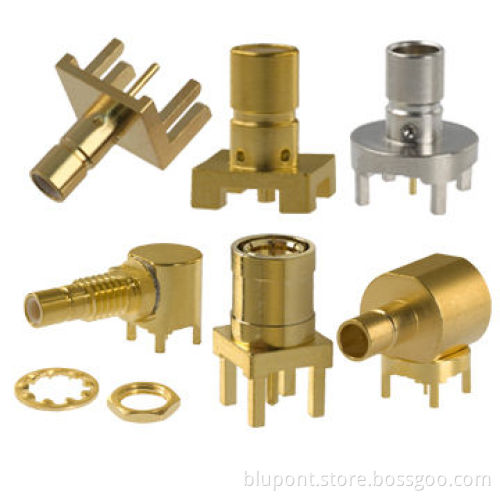

R/A RF connector, coaxial cable assemblies, SMB MCX SMA BNC TNC N F, UL CE RoHSNew

R/A RF connector, coaxial cable assemblies, SMB MCX SMA BNC TNC N F, UL CE RoHSNew

Get Latest Price

Payment Type:: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Product Description

Electrical specification:

Impedance: 50Ω
Frequency range maximum: 18GHz
Voltage rating: 335 volts RMS
Dielectric withstanding voltage: 500 volts RMS
VSWR: 1.15 +0 .02 f (GHz) for straight connector typical
1.25 +0 .025 f (GHz) for right angle connector typical
Contact resistance center contact: 2.0mΩ
Body: 2.0mΩ
Insulation resistance: 5,000MΩ

Mechanical specification:

Mating: 1/4"-36 UNS thread coupling
Cable retention: 6kgf typical
Durability: 500C cycles minimum
Coupling nut retention: 18kgf minimum
Temperature range: - 55 to +155°C

Material:

Connector body: brass per QQ-B-626, gold plating or nickel
Center contact male: brass, gold plating
Center contact female: beryllium copper, gold plating
Insulator: PTFE
Gasket: silicone rubber
Crimp ferrule: annealed copper

Other RF connectors*RF cable assemblies *antennas:

SMA connectors
BNC connectors
N connectors
MCX connectors
MMCX connectors
F connectors
SMB connectors
RF cable assemblies
Wi-Fi antenna
GPS antennas
GSM antennas

Impedance: 50Ω

Frequency range maximum: 18GHz

Voltage rating: 335 volts RMS

Dielectric withstanding voltage: 500 volts RMS

VSWR: 1.15 +0 .02 f (GHz) for straight connector typical

1.25 +0 .025 f (GHz) for right angle connector typical

Contact resistance center contact: 2.0mΩ

Body: 2.0mΩ

Insulation resistance: 5,000MΩ

Mating: 1/4"-36 UNS thread coupling

Cable retention: 6kgf typical

Durability: 500C cycles minimum

Coupling nut retention: 18kgf minimum

Temperature range: - 55 to +155°C

Connector body: brass per QQ-B-626, gold plating or nickel

Center contact male: brass, gold plating

Center contact female: beryllium copper, gold plating

Insulator: PTFE

Gasket: silicone rubber

Crimp ferrule: annealed copper

SMA connectors

BNC connectors

N connectors

MCX connectors

MMCX connectors

F connectors

SMB connectors

RF cable assemblies

Wi-Fi antenna

GPS antennas

GSM antennas
