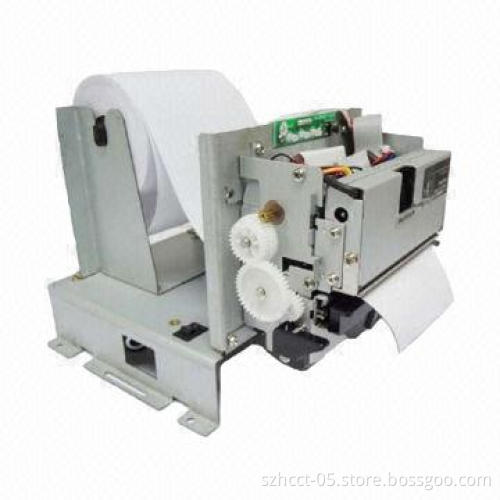

80mm Embedded Thermal Printer with 250mm/Second High Print Speed

80mm Embedded Thermal Printer with 250mm/Second High Print Speed

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Features:

250mm/second high print speed
Epson ESC/POS and Star commands compatible
Open structure with easy maintenance design
2 sensors in paper feeding path
90 and 180° paper feeding direction
Semi-automatic paper loading design
Two feed buttons: paper forward feeding and backwardfeeding
Paper width of 83, 80, 76, 70, 58mm optional
Auto cutter life, 1,500,000 times, mechanism life 150 km
Various installation position

Specifications:

Print method: direct thermal line
Print width: 80mm maximum
Dot density: 640 dots/line
Print speed: 250mm/second
Interface: serial + USB port standard, Ethernet optional
Paper diameter: 254mm
Line space: 3.75mm (can be adjusted by sending commands)
Columns font: A-42 or 48 columns/font B-56 or 64 columns,simplified, traditional Chinese-21 or 24 columns
Character and barcode character size ANK:
- Font A: 12x24 dots
- Font B: 9x17 dots
- Simplified/traditional Chinese: 24x24 dots
Code page: PC437/Katakana/PC850/PC860/PC863/PC865/WestEurope/Greek/Hebrew/EastEurope/Iran/WPC1252/PC866/PC852/PC858/Iranll/Latvian/Arabic/PT151,1251/PC737/WPC1257/ThaiVietnam/PC864/PC1001/(Latvian)/(PC1001)/ (PT151,1251)/( WPC1257)/(PC864)/(Vietnam)/(Thai)
Barcode type: UPC-A/UPC-E/JAN13 (EAN13)/JAN8 (EAN8)CODE39/ITF/Codabar/CODE93/CODE128
Fonts: GB18038
Buffer:
- Data: 12kB
- NV flash: 64kB
Power:
- Cash drawer out: 24V DC/1A
- Power supply: 24V DC/2A
- Power adapter:
  - Input: 110/240V AC, 50 to 60Hz
  - Output: 24V DC/2A
Working temperature: 0 to 45°C, 10 to 80%RH
Storage temperature: -10 to 60°C, 10 to 90%RH
Reliability mechanism: 150km
Easy to operate and maintain
Dimensions: 121.4 x 88.5 x 57.5mm
Weight: 0.65kg

250mm/second high print speed

Epson ESC/POS and Star commands compatible

Open structure with easy maintenance design

2 sensors in paper feeding path

90 and 180° paper feeding direction

Semi-automatic paper loading design

Two feed buttons: paper forward feeding and backwardfeeding

Paper width of 83, 80, 76, 70, 58mm optional

Auto cutter life, 1,500,000 times, mechanism life 150 km

Various installation position

Print method: direct thermal line

Print width: 80mm maximum

Dot density: 640 dots/line

Print speed: 250mm/second

Interface: serial + USB port standard, Ethernet optional

Paper diameter: 254mm

Line space: 3.75mm (can be adjusted by sending commands)

Columns font: A-42 or 48 columns/font B-56 or 64 columns,simplified, traditional Chinese-21 or 24 columns

Character and barcode character size ANK:

Font A: 12x24 dots
Font B: 9x17 dots
Simplified/traditional Chinese: 24x24 dots

Code page: PC437/Katakana/PC850/PC860/PC863/PC865/WestEurope/Greek/Hebrew/EastEurope/Iran/WPC1252/PC866/PC852/PC858/Iranll/Latvian/Arabic/PT151,1251/PC737/WPC1257/ThaiVietnam/PC864/PC1001/(Latvian)/(PC1001)/ (PT151,1251)/( WPC1257)/(PC864)/(Vietnam)/(Thai)

Barcode type: UPC-A/UPC-E/JAN13 (EAN13)/JAN8 (EAN8)CODE39/ITF/Codabar/CODE93/CODE128

Fonts: GB18038

Buffer:
