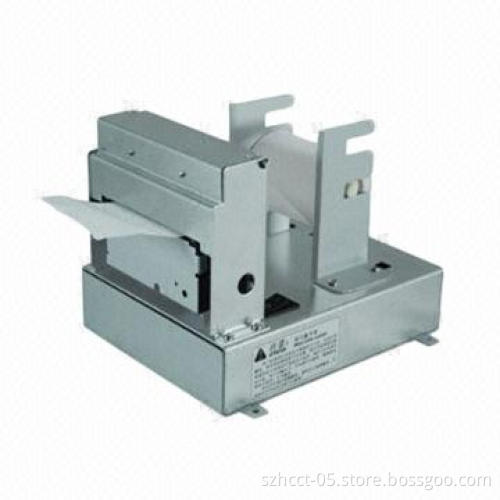

58mm Embedded Thermal Printer
  • 58mm Embedded Thermal Printer
  • 58mm Embedded Thermal Printer
58mm Embedded Thermal Printer
58mm Embedded Thermal Printer

58mm Embedded Thermal Printer

Get Latest Price
Payment Type:
Telegraphic Transfer in Advance (Advance TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer in Advance (Advance TT, T/T)
Product Description
Product Description
  • Mechanism life up to 150km, cutter life up to 1 millioncuts
  • Horizontal and vertical stand available for choice
  • Fully self-developed mainboard
  • Used for self-service terminals, autonomous terminals, queuingmachines, fleeing machines
  • 130mm/sec high printing speed, 85mm diameter paper roll
  • Big mechanism gear and easy paper loading structure
  • Parallel, serial, USB and Ethernet ports optional
  • Built-in data buffer which can receive printing data whenprinting is in progress
  • Supports different density BMP and download imagesprinting
  • Supports Linux and OPOS driver
  • Compatible with ESC/POC commands
  • Characters can be enlarged, bold, underlined, spaces betweencharacters and lines can be adjusted
  • Parameters:
    • Printing method: direct thermal line
    • Printing width: 48mm
    • Dot density: 304 dots/line (203x203dpi)
    • Printing speed: 130mm/s (35 lines/sec)
    • Interface: serial/parallel/USB/Ethernet
    • Paper diameter: 120mm
    • Line space: 3.75mm (can be adjusted by sending commands)
    • Columns:
      • Font A 42 or 48 columns
      • Font B 56 columns
      • Simplified/traditional Chinese: 21 or 24 columns
    • Character and barcode:
      • Character size: ANK font
        Font A: 12 x 24 dots
        Font B: 9x17 dots
        Simplified/traditional Chinese: 21x24 dots
      • Code page: PC437/Katakana/PC850/PC863/PC865/WestEurope/Greek/Hebrew/EastEurope/Iran/WPC1252/PC866/PC852/PC858/Iranll/Latvian/Arabic/PT151,1251/PC737/WPC1257/ThaiVietnam/PC864/PC1001/(Latvian)/(PC1001)/(PT151,1251)/(WPC1257)/(PC864)/(Vietnam)/(Thai)
      • Barcode types: UPC-A, UPC-E, JAN13(EAN13)/JAN8(EAN8)/CODE39/ITF/CODABAR/CODE93/CDE128
      • Fonts: GB2312
      • Buffer:
        • Data: 4k bytes
        • NV flash: 60k bytes
      • Power:
        • Cashdrawer out: 12V DC/1A
        • Power supply: 12V DC/3A
        • Power adapter: 110/220V AC, 50-60Hz Input, 12V DC/3Aoutput
      • Weight: 1.0kg
      • Dimension (LxWxH): 2,010x140mmx111mm
      • Working environment:
        Temperature: 0-45°C, 10-80% humidity
      • Storage environment:
        Temperature: -10-60°C, 10-90% humidity
      • Reliability mechanism: 150km
  • Printing method: direct thermal line
  • Printing width: 48mm
  • Dot density: 304 dots/line (203x203dpi)
  • Printing speed: 130mm/s (35 lines/sec)
  • Interface: serial/parallel/USB/Ethernet
  • Paper diameter: 120mm
  • Line space: 3.75mm (can be adjusted by sending commands)
  • Columns:
    • Font A 42 or 48 columns
    • Font B 56 columns
    • Simplified/traditional Chinese: 21 or 24 columns
  • Character and barcode:
    • Character size: ANK font
      Font A: 12 x 24 dots
      Font B: 9x17 dots
      Simplified/traditional Chinese: 21x24 dots
    • Code page: PC437/Katakana/PC850/PC863/PC865/WestEurope/Greek/Hebrew/EastEurope/Iran/WPC1252/PC866/PC852/PC858/Iranll/Latvian/Arabic/PT151,1251/PC737/WPC1257/ThaiVietnam/PC864/PC1001/(Latvian)/(PC1001)/(PT151,1251)/(WPC1257)/(PC864)/(Vietnam)/(Thai)
    • Barcode types: UPC-A, UPC-E, JAN13(EAN13)/JAN8(EAN8)/CODE39/ITF/CODABAR/CODE93/CDE128
    • Fonts: GB2312
    • Buffer:
      • Data: 4k bytes
      • NV flash: 60k bytes
    • Power:
      • Cashdrawer out: 12V DC/1A
      • Power supply: 12V DC/3A
      • Power adapter: 110/220V AC, 50-60Hz Input, 12V DC/3Aoutput
    • Weight: 1.0kg
    • Dimension (LxWxH): 2,010x140mmx111mm
    • Working environment:
      Temperature: 0-45°C, 10-80% humidity
    • Storage environment:
      Temperature: -10-60°C, 10-90% humidity
    • Reliability mechanism: 150km
  • Font A 42 or 48 columns
  • Font B 56 columns
  • Simplified/traditional Chinese: 21 or 24 columns
  • Character size: ANK font
    Font A: 12 x 24 dots
    Font B: 9x17 dots
    Simplified/traditional Chinese: 21x24 dots
  • Code page: PC437/Katakana/PC850/PC863/PC865/WestEurope/Greek/Hebrew/EastEurope/Iran/WPC1252/PC866/PC852/PC858/Iranll/Latvian/Arabic/PT151,1251/PC737/WPC1257/ThaiVietnam/PC864/PC1001/(Latvian)/(PC1001)/(PT151,1251)/(WPC1257)/(PC864)/(Vietnam)/(Thai)
  • Barcode types: UPC-A, UPC-E, JAN13(EAN13)/JAN8(EAN8)/CODE39/ITF/CODABAR/CODE93/CDE128
  • Fonts: GB2312
  • Buffer:
    • Data: 4k bytes
    • NV flash: 60k bytes
  • Power:
    • Cashdrawer out: 12V DC/1A
    • Power supply: 12V DC/3A
    • Power adapter: 110/220V AC, 50-60Hz Input, 12V DC/3Aoutput
  • Weight: 1.0kg
  • Dimension (LxWxH): 2,010x140mmx111mm
  • Working environment:
    Temperature: 0-45°C, 10-80% humidity
  • Storage environment:
    Temperature: -10-60°C, 10-90% humidity
  • Reliability mechanism: 150km
  • Data: 4k bytes
  • NV flash: 60k bytes
  • Cashdrawer out: 12V DC/1A
  • Power supply: 12V DC/3A
  • Power adapter: 110/220V AC, 50-60Hz Input, 12V DC/3Aoutput
