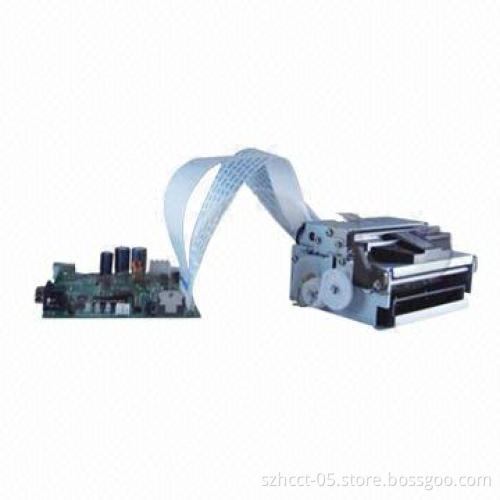

80mm Embedded Thermal Printer with DC 24V/2A Power Supply

Get Latest Price

Payment Type:: T/T, L/C, PayPal or Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C, PayPal or Western Union

Product Description

Features:

250mm/sec high print speed

Epson ESC/POS and Star commands compatible

0pen structure with easy maintenance design

Two sensors in paper feeding path

90°and 180°paper feeding direction

Semi-automatic paper loading design

Two feed buttons: paper forward feeding and backwardfeeding

Paper width: 83mm, 80mm, 76mm, 70mml, 58mm optional

Auto cutter life: 1,500,000 times, mechanism life 150km

Various installation position

Easy operation and maintenance

Specification:

Print method: direct thermal line

Print width: 80mm maximum

Dot density: 640 dot/line

Print speed: 250mm/s

Interface: serial + USB port standard, Ethernet optional

Paper diameter: 254mm

Line space: 3.75mm (can be adjusted by sending commands)

Columns: font A-42/48 columns, font B-56/64 columns,simplified/traditional Chinese- 21/24 columns

Character/barcode character size ANK font:

Font A: 12 x 24 dots

Font B: 9 x 17 dots

Simplified/traditional Chinese: 24 x 24 dots

Code page: PC437/Katakana/PC850/PC860/PC863/PC865/WestEurope/Greek/Hebrew/EastEurope/Iran/WPC1252/PC866/PC852/PC858/Iranll/Latvian/Arabic/PT151,1251/PC737/WPC1257/ThaiVietnam/PC864/PC1001/(Latvian)/(PC1001)/ (PT151,1251)/( WPC1257)/(PC864)/(Vietnam)/(Thai)

Barcode type:UPC-A/UPC-E/JAN13(EAN13)/JAN8(EAN8)CODE39/ITF/CODABAR/CODE93/CODE128

Fonts: GB18038

Buffer data: 12K bytes

NV flash: 64K bytes

Power cash drawer: DC 24V/1A output

Power supply: DC 24V/2A

Power adapter:

Input: AC 110V/240V 50Hz-60Hz

Output: DC 24V/2A

Physical properties weight: 0.65kg

Dimensions: 121.4 x 88.5 x 57.5mm (L x W x H)

Working environment temperature: 0-45°C, 10-80%
