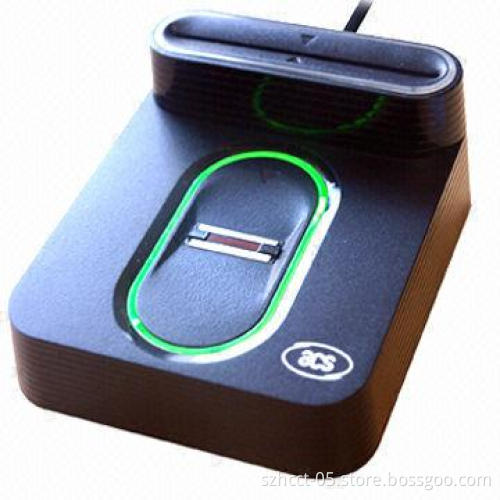

Smart Card Reader with Fingerprint Sensor, Supports Image Optimization and Filtering

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Features:

Fingerprint scanner:

Match-on reader: template extraction and matching algorithmsrun within the device itself, ot in the PC (using defaultfingerprint algorithm)
UPEK TCS4-TCD50 swipe fingerprint sensor
Swipe speed of up to 40cm/sec (15-inch/sec)
Active sensor size: 9.6 x 0.2mm
High-resolution 508DPI imaging, array size: 192 x 4 pixels
Supports image optimization and filtering
Utilizes CMOS active capacitive pixel-sensing technology,fingerprint images in any environment
Compliant with BioAPI 1.1 specification and Windows BiometricFramework
Supports 3rd-party fingerprint algorithms

Specification:

Dimensions (L x W x H): 85.1 x 70.1 x 35.5mm
Weight: 194g
Interface: USB full speed
Supply voltage: regulated 5V DC
Supply current: maximum 50mA
Operating temperature: 0 to 50°C
CLK frequency: 4MHz
Smart card interface support
PC/SC, BioAPI 1.1, Windows biometric framework, CE, FCC, RoHS,USB full speed, WHQL XP, Vista and 7
Operating system support: Windows 2000, XP, Vista, 7, Server2003 and Server 2008 R2/Linux

Integrated fingerprint scanner and smart card reader

Full-speed USB interface

Encrypted fingerprint template stored inside smart card

Compliant with PC/SC specification

Read/write speed: up to 250Kbps

Supports all MCU card with T = 0/T = 1 protocols

Match-on reader: template extraction and matching algorithmsrun within the device itself, ot in the PC (using defaultfingerprint algorithm)

UPEK TCS4-TCD50 swipe fingerprint sensor

Swipe speed of up to 40cm/sec (15-inch/sec)

Active sensor size: 9.6 x 0.2mm

High-resolution 508DPI imaging, array size: 192 x 4 pixels

Supports image optimization and filtering
