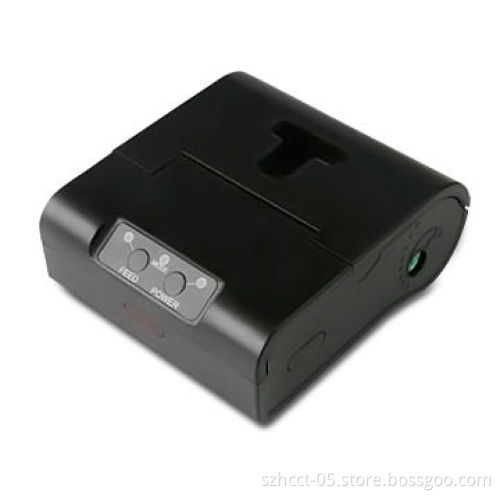

Portable Printer (Dot Matrix) with Semi-auto Loading Paper Supply Method

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

key Features:

Specifications:

Printing method: Dot matrix
Printing speed: 5.5mm/s, 1.2line/s (average)
Resolution: 5 dots/mm, 240 dots/line
Effective printing width: 48mm
Character set: ASCII, GB18030 (Chinese)
Print font ANK: 7 x 5/12 x 6/16 x 8
Chinese: 12 x 12/16 x 16
Character per line: 12 x 12: 20 (Chinese), 40 (English), 16 x16: 15 (Chinese), 30 (English)
Paper specifications:
- Paper type: plain paper
- Paper width: 57.5 ± 0.5mm
- Paper roll diameter:
  - Maximum: 40.0mm
  - Roll core inner diameter: 13mm (minimum)
  - Paper thickness: 0.06 to 0.07mm
- Paper supply method: semi-auto loading
- Reliability:
  - MCBF: 1,000,000 lines
  - TPH: 1,500,000 lines
  - Emulation: ESC/POS
- Sensor: paper end sensor, power near end sensor
- Interface:
  - T5-BT: RS-232
- Bluetooth
- T5-Ir: RS-232, IrDA
- Power adaptor: 12V DC/2A
- Battery power: 7.4V DC, 1.5A rechargeable Li-ion battery
- Battery duration: 30m continuous printing (25% density)
- Physical weight: 270g (excluding roll paper)
- Dimension: 99 x 97 x 46mm
- Color: black

Dot matrix impact printing method

Withstands drops up to 1.2 meter

Semi-auto paper loading

Large paper capacity and long battery life (7.4V, 1500mAh)

Intelligent quick charge battery

Continuing printing when battery in charging

Supports a wide variety of serial and wireless communication options

Printing method: Dot matrix

Printing speed: 5.5mm/s, 1.2line/s (average)

Resolution: 5 dots/mm, 240 dots/line

Effective printing width: 48mm

Character set: ASCII, GB18030 (Chinese)

Print font ANK: 7 x 5/12 x 6/16 x 8

Chinese: 12 x 12/16 x 16

Character per line: 12 x 12: 20 (Chinese), 40 (English), 16 x16: 15 (Chinese), 30 (English)

Paper specifications:

Paper type: plain paper
Paper width: 57.5 ± 0.5mm
Paper roll diameter:
- Maximum: 40.0mm
- Roll core inner diameter: 13mm (minimum)
- Paper thickness: 0.06 to 0.07mm
Paper supply method: semi-auto loading
Reliability:
- MCBF: 1,000,000 lines
- TPH: 1,500,000 lines
- Emulation: ESC/POS
Sensor: paper end sensor, power near end sensor
Interface:
- T5-BT: RS-232
Bluetooth
T5-Ir: RS-232, IrDA
Power adaptor: 12V DC/2A
Battery power: 7.4V DC, 1.5A rechargeable Li-ion battery
Battery duration: 30m continuous printing (25% density)
Physical weight: 270g (excluding roll paper)
Dimension: 99 x 97 x 46mm
Color: black
