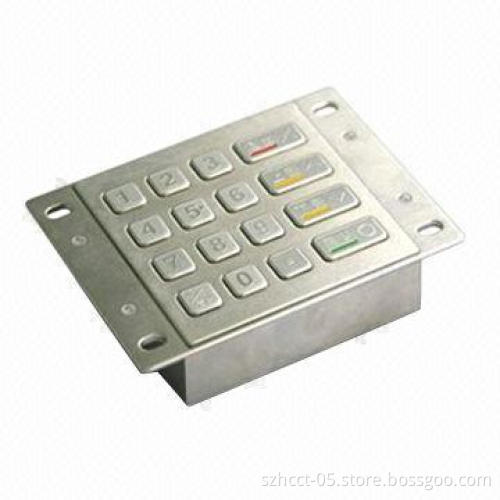

Metal Pinpad with 12 Numeric and 4 Function Keys

Get Latest Price

Payment Type:: T/T, L/C, PayPal or Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C, PayPal or Western Union

Product Description

General:

For self-service devices such as info-kiosks, vending machine,and industrial devices like medical instruments, computer numericalcontrols (CNC), entrance guard systems and metering devices

Algorithms:

Pinblock standards: IBM3624, ANSIX9.8, ISO9564-0/1/3, DIEBOLD,DIEBOLDCO, ECI2, ECI3, VISA, VISA3, IBM-OFFSET, VISA-OFFSET

MAC standards: ANSI X9.9, ANSI X9.19

DES, Triple DES

Approvals: CE, ESD level 4 (air discharge: ±15kV,contact discharge of ±8kV)

Features:

Waterproof, dust-proof, drill-proof, pry-proof

Tamper detection leads to erasure of keys and sensitiveinformation

Proprietary key management system

Supports 4 x PSAM cards (optional)

Supports XFS 2.0/3.03/3.10

Specifications:

12 numeric keys and 4 function keys

8 function keys expandable

Keys lifetime: >2,000,000 cycles per key

Force on keystroke: 2N-3.5N

Force on function keys: 3N-6N

Keys travel: >0.4mm

Data storage life: >5 years

MTBF: >100,000 hours

Overall size (L x W x H): 137 x 98 x 26mm

Front panel size:

E3051-S: 87.5 x 91.5 x 1.5mm

E3051-M: 100 x 91.5 x 1.5mm

E3051-L: 100 x 100 x 1.5mm

Environmental:

Operating voltage: 4.75V-5.25V

Operating temperature range: -25-+65°C

Storage temperature range: -35-+75°C

Operating humidity: d95% RH (non-condensing)

Interface:

RS232: RJ45

Supports PS2 (optional)
